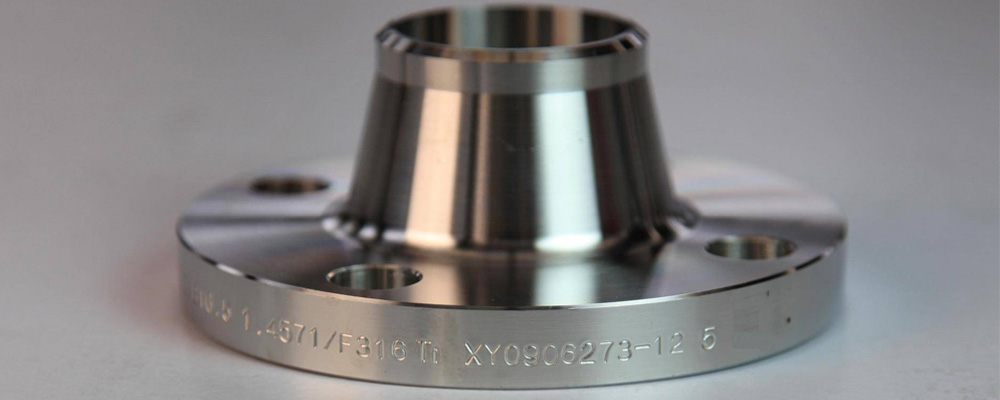

Weld Neck Flanges, Stainless Steel Weld Neck Flanges, ANSI B16.5 WNRF Flanges

This way that this product has superb welding properties, wherein it’s low carbon content material additionally improves cleanliness and weld strength. This Titanium Alloy Weld Neck Flanges is supposed to be used below extreme corrosive conditions. The addition of copper to these products offers it corrosion resistant properties advanced to the traditional chrome nickel steels, especially to sulphuric, phosphoric and acetic acids. This product is non-magnetic, and gives awesome formability, sturdiness and weldability. These products are broadly used for marine applications because of their awesome resistance to seawater corrosion, suitable fabricability, and their effectiveness within the decreasing macrofouling levels. These products also are utilized in non-marine applications because of their durability, look and antimicrobial properties. In Multi-Stage Flash (MSF) desalination, our Copper Nickel Weld Neck Flanges are normally used for warmth rejection and healing sections and brine warmthers. It is austenitic steel taken into consideration for ultimate crevice corrosion and resistance to pitting. This steel is an exceptionally hovering end, nitrogen and molybdenum alloyed brilliant austenitic steel via way of way of getting low carbon content material.

In a number of applications, this steel has been found to be an extra affordable alternative for improved titanium and nickel alloys. A wide variety of usual applications of these steel are marine atmosphere, off shore and additionally in chemical industries. These steel became industrialized for the utilization in halide-comprising atmospheres like seawater. Alloy 20 Weld Neck Flanges is austenitic steel designed for max resistance to pitting and crevice corrosion. These steel became advanced to be used in halide-containing environments including seawater. This steel is non-magnetic, and offers awesome sturdiness, weldability and formability. The including of copper content material to these this steel gives advanced corrosion resistant functions to the regular nickel- chrome steels, in particular to phosphoric, acetic and sulphuric acids.

Size Chart	1/2" (15 NB) to 48" (1200NB) DN10~DN5000
Standards	ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ASME Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ASME B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092
Pressure Rating ANSI	Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS
DIN	6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64
JIS	5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K
UNI	6Bar 10Bar 16Bar 25Bar 40Bar
EN	6Bar 10Bar 16Bar 25Bar 40Bar
Coating	Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized
Most Common Types	Forged / Threaded / Screwed / Plate
Test Certificates	EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc
Production technique	Forged, Heat treated and machined
Connect Type/ Flange Face Type	Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove
Special design	As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2") to 200 NB (8") Equal and Reducing Configurations
Test	Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector
Equipment	Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc
Origin	Indian / West Europe / Japan / USA / Korean
Manufacturer of	ASME DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. ANSI B16.5 Class 150 Socket Weld Flanges: -BS Flange, EN Flange, API 6A Flanges, ASME Flanges, ASME Flanges, DIN Flanges, EN1092-1 Flanges, UNI Flanges, JIS/ KS Flanges, BS4504 Flanges, GB Flanges, AWWA C207 Flanges, GOST Flanges, PSI Flangse B.S: BS4504 , BS3293, BS1560, BS10 AS 2129: Table D; Table E; Table H ASME B16.5, ASME B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings ASME : ASME B16.5, ASME B16.47(API605), MSS SP44, ASME B16.36, ASME B16.48 ASME B16.5, ASME B16.47, MSS SP44, ASME B16.36, ASME B16.48 American standard (ANSI) German (DIN) British standard (BS) DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638 The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203; UNI2276

Size Chart

1/2" (15 NB) to 48" (1200NB) DN10~DN5000

Standards

ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ASME Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ASME B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092

Pressure Rating ANSI

Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS

DIN

6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64

JIS

5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K

UNI

6Bar 10Bar 16Bar 25Bar 40Bar

Coating

Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized

Most Common Types

Forged / Threaded / Screwed / Plate

Test Certificates

EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc

Production technique

Forged, Heat treated and machined

Connect Type/ Flange Face Type

Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove

Special design

As per your drawing
AS, ANSI, BS, DIN and JIS
15 NB (1/2") to 200 NB (8")
Equal and Reducing Configurations

Test

Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector

Equipment

Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc

Origin

Indian / West Europe / Japan / USA / Korean

Manufacturer of

ASME DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc.
ANSI B16.5 Class 150 Socket Weld Flanges: -BS Flange, EN Flange, API 6A Flanges, ASME Flanges, ASME Flanges, DIN Flanges, EN1092-1 Flanges, UNI Flanges, JIS/ KS Flanges, BS4504 Flanges, GB Flanges, AWWA C207 Flanges, GOST Flanges, PSI Flangse

B.S: BS4504 , BS3293, BS1560, BS10
AS 2129: Table D; Table E; Table H
ASME B16.5, ASME B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
ASME : ASME B16.5, ASME B16.47(API605), MSS SP44, ASME B16.36, ASME B16.48
ASME B16.5, ASME B16.47, MSS SP44, ASME B16.36, ASME B16.48
American standard (ANSI)
German (DIN)
British standard (BS)
DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638
The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203; UNI2276

Stainless Steel Weld Neck Flanges	ASTM/ASME A/SA182 F304, F304L, F316, F316L, ASTM/ASME A/SA351 CF8, CF3, CF8M, CF3M, DIN 1.4301, DIN 1.4306, DIN 1.4401, DIN 1.4404, DIN 1.4308, DIN 1.4408, DIN 1.4306, DIN 1.4409
Carbon Steel Weld Neck Flanges	ASTM/ASME A/SA105 A/SA105N & A/SA216-WCB, DIN 1.0402, DIN 1.0460, DIN 1.0619, Die Steel, ASTM A105 / ASME SA105, A105N, ASTM A350 LF2 / ASME SA350, High Yield CS ASTM A694 / A694 (F52 F56 F60 F65 F70 F80)
Nickel Alloy Weld Neck Flanges	ASTM B564 / ASME SB564, Nickel 200, Nickel 201, Nickel 205, Nickel 205LC
Duplex Steel Weld Neck Flanges	S31803 / S32205 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Super Duplex Weld Neck Flanges	S32750 / S32760 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Incoloy Weld Neck Flanges	ASTM B564 / ASME SB564, Incoloy 800, 800H, 800HT (UNS N08800), 825 (UNS N08825), 925 Flanges
254 SMO Weld Neck Flanges	ASTM A182 / ASME SA182, SMO 254/6Mo, UNS S31254, DIN 1.4547
Alloy Steel Weld Neck Flanges	ASTM A182 / ASME SA182 F5, F9, F11, F12, F22, F91
Titanium Weld Neck Flanges	ASTM B381 / ASME SB381, Titanium Gr. 1, Titanium Gr. 2, Titanium Gr. 4, Titanium Gr. 5, Titanium Gr. 7 ASTM R50250/GR.1 \| R50400/GR.2 \| R50550/GR.3 \| R50700/GR.4 \| GR.6 \|R52400/GR.7 \| R53400/GR.12 \| R56320/GR.9 \|R56400/GR.5
Copper Weld Neck Flanges	T1, T2, C10100, C10200, C10300, C10400, C10500, C10700, C10800, C10910,C10920, TP1, TP2, C10930, C11000, C11300, C11400, C11500, C11600, C12000,C12200, C12300, TU1, TU2, C12500, C14200, C14420, C14500, C14510, C14520, C14530, C17200, C19200, C21000, C23000, C26000, C27000, C27400, C28000, C33000, C33200, C37000, C44300, C44400, C44500, C60800, C63020, C68700, C70400, C70600, C70620, C71000, C71500, C71520, C71640, etc
Copper Nickel Weld Neck Flanges	ASTM / ASME SB 61 / 62 / 151 / 152, Copper Nickel 90/10 (C70600 ), Cupro Nickel 70/30 (C71500), UNS C71640
Inconel Weld Neck Flanges	ASTM B564 / ASME SB564, Inconel 600, 601, 625, 718, 783, 690, x750 ANSI B16.5 Class 150 Weld Neck Flanges
Hastelloy Weld Neck Flanges	ASTM B564 / ASME SB564, Hastelloy C276 (UNS N10276), C22 (UNS N06022), C4, C2000, B2, B3, X Flanges
Monel Weld Neck Flanges	ASTM B564 / ASME SB564, Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500)
Alloy 20 Weld Neck Flanges	ASTM B462 / ASME SB462, Carpenter® 20 Alloy, Alloy 20Cb-3
Aluminium Weld Neck Flanges	5052 /6061/ 6063 / 2017 / 7075 / etc.
Nimonic Weld Neck Flanges	Nimonic 75, Nimonic 80A, Nimonic 90
Brass Weld Neck Flanges	3602 / 2604 / H59 / H62 / etc.
Other Weld Neck Flanges material	Tin bronze, Alumunum bronze, Lead bronze

CL	150	300	600	900	1500	2500
DIA A	30	38	38	38	38	43
DIA D	90	95	95	120	120	135
THK B	9.6	12.7	14.3	22.3	22.3	30.2
THK B	11.2	14.3	20.7	28.7	28.7	36.6
DIA G	35.1	35.1	35.1	35.1	35.1	35.1
DIA K	60.3	66.7	66.7	82.6	82.6	88.9
H	46	51	52	60	60	73
H	47.6	52.6	58.4	66.4	66.4	79.4
NO. L	4	4	4	4	4	4
DIA L	15.9	15.9	15.9	22.2	22.2	22.2
Stud Bolts Diameter x Length
DIA (in)	1/2	1/2	1/2	3/4	3/4	3/4
Len mm	55	65	75	110	110	120
Other Diameters
NPS	1/2	3/4	1	1¼	1½	2	2½
	3	3½	4	5	6	8	10
	12	14	16	18	20	24

ANSI B16.5 WELD NECK FLANGES WEIGHT (KGS)
Nom Pipe Size	150#			300#			600#			900#			1500#			2500#
	WN	S/O	B/K	WN	S/O	B/K	WN	S/O	B/K	WN	S/O	B/K	WN	S/O	B/K	WN	S/O	B/K
1/2”	0.7	0.4	0.5	0.8	0.7	0.8	0.9	0.8	0.8	2.1	1.8	1.9	2.1	1.8	1.9	3.2	3	3
3/4”	0.8	0.7	0.8	1.4	1.2	1.2	1.6	1.4	1.4	2.7	2.4	2.7	2.7	2.4	2.7	3.6	4	4.5
1”	1.1	0.8	0.9	1.7	1.4	1.5	1.9	1.7	1.7	3.9	3.6	3.7	3.9	3.6	3.7	5.4	5	5
1.1/4”	1.5	1.2	1.3	2.2	1.8	2	2.6	2.1	2.4	4.5	4.1	4.3	4.5	4.1	4.3	7.8	8	8
1.1/2”	1.8	1.4	1.6	3.2	2.7	2.9	3.6	3.1	3.4	6.2	5.4	5.9	6.2	5.4	5.9	11.5	11	11
2”	2.7	2.2	2.6	3.6	3.2	3.5	4.7	3.9	4.4	11.3	10.5	11.3	11.3	10.5	11.3	19	17	17
2.1/2”	4.4	3.5	4.1	5.4	4.5	5.3	4.8	5.4	6.8	16.3	15.8	16	16.3	15.8	16	24	25	25
3”	5.2	3.8	5.1	7.3	5.9	7.2	8.7	7.3	8.9	15	12.3	16.8	21	21.5	19.5	42.6	38	39
3-1/2”	6.4	5	6.5	8.9	7.5	9.2	11.6	9	12.7	–	–	–	–	–	–	–	–	–
4”	7.5	5.6	7.5	11.8	10	12.2	18.4	16.5	18.6	24	23.2	24.5	31.8	31	33	64	58	60
5”	9.2	6.5	9.2	16	12.5	16	31	28.5	30.8	38.5	37.5	39.5	59	58.8	60	111	95	101
6”	11.0	8.1	11.8	20.2	16.5	22	37	36.2	38	50	48.3	51.5	72	74	75	171	146	156
8”	18.4	13	20.4	31.2	25.5	36	54.5	51.5	62.2	85	75	89	124	112	125	261	220	242
10”	25.5	18.4	31	44.3	35	55	98.5	76.2	102	123	110	131	207	184	215	485	420	465
12”	37	28.5	47	63.5	52	82.5	105	89.5	132	168	146	187	306	264	316	698	590	665
14”	51	37.5	60	86	73	108	150	102	158	198	172	224	416	–	–	–	–	–
16”	61.5	44.5	61	112	88	139	177	150	225	225	192	259	567	–	–	–	–	–
18”	71.5	54	93	141	115	178	228	180	285	318	272	383	736	–	–	–	–	–
20”	85	72	127	173	139	228	285	231	365	376	330	482	929	–	–	–	–	–
24”	119	95	190	248	212	350	372	330	532	680	632	905	1504	–	–	–	–	–
