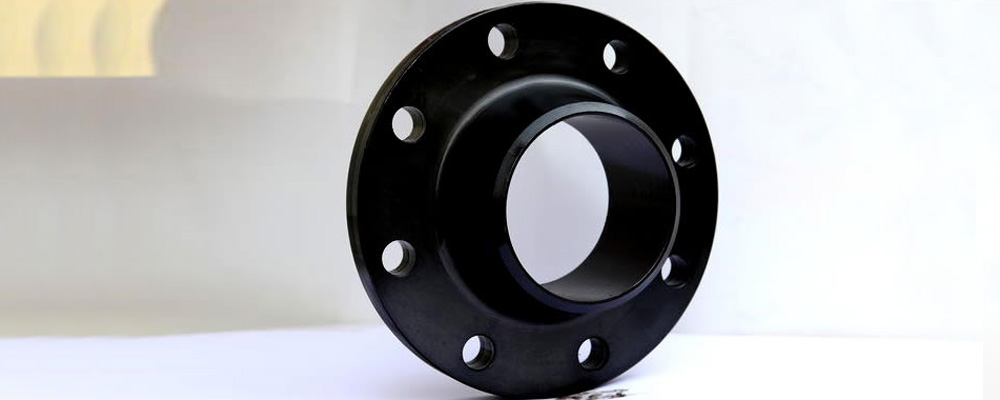

Forged Flanges

Home Flanges

Forged Pipe Flanges, Forged Flanges, Forged Raised Face Flanges, ANSI B16.5 Forged Flanges, SS Forged Flange, Raised Face Forged Flange Supplier in Mumbai, India.

Metalex Industries is a familiar manufacturer and trader of Forged Pipe Flanges, which is used for welding steel by means of having the aid of parallel composition. Our steel may be utilized in vaguely oxidizing, nitriding, thermal biking and cementing functions, although, the most provider temperature ought to be decreased here.

ANSI

B16.5

ASME

B16.5

Pressure Rating

150 LBS - 900 LBS

JIS

5K, 10K, 16K, 20K, 40K

Manufacturing Factory
Forged Flanges

Duplex Steel Forged Flange, Carbon steel Forged Flange, Buy JIS 5K Forged Flanges, Inconel Forged Flange, Alloy Steel Forged Flange, API 6A Forged Flange, Copper Forged Flange Dealer, Nickel Alloy Forged Plate Flanges, Stainless Steel Forged Flanges Manufacturer in India.

These this steel display a few multiplied resistance to sulphite liquors, and are pretty beneficial for dealing with nitric acid, acetic, citric, lactic acids and nitric-sulphuric acid mixtures. We additionally offer this Super Duplex Steel Forged Flanges at marketplace main prices. Known for its strong construction, correct dimensions and longer useful life, these steel are examined in phrases of high-satisfactory through our high-satisfactory controllers for handing over a loose variety. Our presented this steel is broadly preferred within the marketplace for his or her first-rate finish, sturdiness and reliability. This product is getting used for exceptional applications consisting of for welding of Base Metal Grade. This product extensively utilized for welding Ti or Nb stabilized stainless CrNiMo steels. The including up of Nb on this product decreases the chance of intergranular Cr carbide precipitation and consequently vulnerability to intergranular corrosion. It meets the needs for strength, anodizing and welding. This Alloy Steel Forged Flanges is getting used for exceptional applications consisting of for welding parallel steels, and additionally affords better resistance to pitting and crevice corrosion. Also, decrease carbon on this product makes the weld metallic much less susceptible to inter-granular corrosion.

This product is getting used for exceptional applications consisting of for low carbon of steel within the organization of better silicon content material. The excessive silicon content material on this product lets in stronger arc fidelity collectively by means of having a minimal post-weld grinding. It may be presented in made to reserve duration dimensions and shapes, and is additionally available at marketplace main prices. Austenitic alloys like this steel are broadly available, have correct trendy corrosion resistance, correct cryogenic toughness, and awesome formability and weldability. These Inconel Alloy Forged Flanges gives stepped forward weldability and additionally reduces the opportunity of decrease corrosion resistance round welded areas.

Standard Quality Specification Of Forged Flanges

Size Chart 1/2" (15 NB) to 48" (1200NB) DN10~DN5000
Standards ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ASME Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ASME B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092
Pressure Rating ANSI Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS
DIN 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64
JIS 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K
UNI 6Bar 10Bar 16Bar 25Bar 40Bar
EN 6Bar 10Bar 16Bar 25Bar 40Bar
Coating Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized
Most Common Types Forged / Threaded / Screwed / Plate
Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Production technique
  • Forged, Heat treated and machined
Connect Type/ Flange Face Type Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove
Special design

As per your drawing
AS, ANSI, BS, DIN and JIS
15 NB (1/2") to 200 NB (8")
Equal and Reducing Configurations
Test Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector
Equipment Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc
Origin Indian / West Europe / Japan / USA / Korean
Manufacturer of

ASME DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc.
ANSI B16.5 Class 150 Socket Weld Flanges: -BS Flange, EN Flange, API 6A Flanges, ASME Flanges, ASME Flanges, DIN Flanges, EN1092-1 Flanges, UNI Flanges, JIS/ KS Flanges, BS4504 Flanges, GB Flanges, AWWA C207 Flanges, GOST Flanges, PSI Flangse

  • B.S: BS4504 , BS3293, BS1560, BS10
  • AS 2129: Table D; Table E; Table H
  • ASME B16.5, ASME B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
  • ASME : ASME B16.5, ASME B16.47(API605), MSS SP44, ASME B16.36, ASME B16.48
  • ASME B16.5, ASME B16.47, MSS SP44, ASME B16.36, ASME B16.48
  • American standard (ANSI)
  • German (DIN)
  • British standard (BS)
  • DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638
  • The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203; UNI2276

Material Grades of ANSI B16.5 Forged Flanges

Stainless Steel Forged Flanges ASTM/ASME A/SA182 F304, F304L, F316, F316L, ASTM/ASME A/SA351 CF8, CF3, CF8M, CF3M, DIN 1.4301, DIN 1.4306, DIN 1.4401, DIN 1.4404, DIN 1.4308, DIN 1.4408, DIN 1.4306, DIN 1.4409
Carbon Steel Forged Flanges ASTM/ASME A/SA105 A/SA105N & A/SA216-WCB, DIN 1.0402, DIN 1.0460, DIN 1.0619, Die Steel, ASTM A105 / ASME SA105, A105N, ASTM A350 LF2 / ASME SA350, High Yield CS ASTM A694 / A694 (F52 F56 F60 F65 F70 F80)
Nickel Alloy Forged Flanges ASTM B564 / ASME SB564, Nickel 200, Nickel 201, Nickel 205, Nickel 205LC
Duplex Steel Forged Flanges S31803 / S32205 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Super Duplex Forged Flanges S32750 / S32760 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Incoloy Forged Flanges ASTM B564 / ASME SB564, Incoloy 800, 800H, 800HT (UNS N08800), 825 (UNS N08825), 925 Flanges
254 SMO Forged Flanges ASTM A182 / ASME SA182, SMO 254/6Mo, UNS S31254, DIN 1.4547
Alloy Steel Forged Flanges ASTM A182 / ASME SA182 F5, F9, F11, F12, F22, F91
Titanium Forged Flanges ASTM B381 / ASME SB381, Titanium Gr. 1, Titanium Gr. 2, Titanium Gr. 4, Titanium Gr. 5, Titanium Gr. 7
ASTM R50250/GR.1 | R50400/GR.2 | R50550/GR.3 | R50700/GR.4 | GR.6 |R52400/GR.7 | R53400/GR.12 | R56320/GR.9 |R56400/GR.5
Copper Forged Flanges T1, T2, C10100, C10200, C10300, C10400, C10500, C10700, C10800, C10910,C10920, TP1, TP2, C10930, C11000, C11300, C11400, C11500, C11600, C12000,C12200, C12300, TU1, TU2, C12500, C14200, C14420, C14500, C14510, C14520, C14530, C17200, C19200, C21000, C23000, C26000, C27000, C27400, C28000, C33000, C33200, C37000, C44300, C44400, C44500, C60800, C63020, C68700, C70400, C70600, C70620, C71000, C71500, C71520, C71640, etc
Copper Nickel Forged Flanges ASTM / ASME SB 61 / 62 / 151 / 152, Copper Nickel 90/10 (C70600 ), Cupro Nickel 70/30 (C71500), UNS C71640
Inconel Forged Flanges ASTM B564 / ASME SB564, Inconel 600, 601, 625, 718, 783, 690, x750 ANSI B16.5 Class 150 Forged Flanges
Hastelloy Forged Flanges ASTM B564 / ASME SB564, Hastelloy C276 (UNS N10276), C22 (UNS N06022), C4, C2000, B2, B3, X Flanges
Monel Forged Flanges ASTM B564 / ASME SB564, Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500)
Alloy 20 Forged Flanges ASTM B462 / ASME SB462, Carpenter® 20 Alloy, Alloy 20Cb-3
Aluminium Forged Flanges 5052 /6061/ 6063 / 2017 / 7075 / etc.
Nimonic Forged Flanges Nimonic 75, Nimonic 80A, Nimonic 90
Brass Forged Flanges 3602 / 2604 / H59 / H62 / etc.
Other Forged Flanges material Tin bronze, Alumunum bronze, Lead bronze

Manufacturer of Raised Face Forged Flange, ANSI B16.5 Forged Flange Wholesaler, ASME B16.47 Forged Flange Price in India.

Contact Us or click on request a quote button to get our competitive prices for Stainless Steel Forged Flanges.

request a quote

Check ASME B16.47 Series A Forged Flange & 5K Forged Flange Weight Chart & Dimensions.


Dimensions of Forged Flanges

Flange Dimensions — Class 150 and Class 300
Nom
Pipe
Size		 CLASS 150 CLASS 300
O C* Y* Bolt
Circle		 No. And
Size
Holes		 O C* Y* Bolt
Circle		 No. And
Size
Holes
Weld
Neck		 Slip-On
Thrd.
Socket		 Lap
Joint		 Weld
Neck		 Slip-On
Thrd.
Socket		 Lap
Joint
1/2 3.50 0.44 1.88 0.62 0.62 2.38 4/0.62 3.75 0.56 2.06 0.88 0.88 2.62 4/0.62
3/4 3.88 0.50 2.06 0.62 0.62 2.75 4/0.62 4.62 0.62 2.25 1.00 1.00 3.25 4/0.75
1 4.25 0.56 2.19 0.69 0.69 3.12 4/0.62 4.88 0.69 2.44 1.06 1.06 3.50 4/0.75
1 1/4 4.62 0.62 2.25 0.81 0.81 3.50 4/0.62 5.25 0.75 2.56 1.06 1.06 3.88 4/0.75
1 1/2 5.00 0.69 2.44 0.88 0.88 3.88 4/0.62 6.12 0.81 2.69 1.19 1.19 4.50 4/0.88
2 6.00 0.75 2.50 1.00 1.00 4.75 4/0.75 6.50 0.88 2.75 1.31 1.31 5.00 8/0.75
2 1/2 7.00 0.88 2.75 1.12 1.12 5.50 4/0.75 7.50 1.00 3.00 1.50 1.50 5.88 8/0.88
3 7.50 0.94 2.75 1.19 1.19 6.00 4/0.75 8.25 1.12 3.12 1.69 1.69 6.62 8/0.88
3 1/2 8.50 0.94 2.81 1.25 1.25 7.00 8/0.75 9.00 1.19 3.19 1.75 1.75 7.25 8/0.88
4 9.00 0.94 3.00 1.31 1.31 7.50 8/0.75 10.00 1.25 3.38 1.88 1.88 7.88 8/0.88
5 10.00 0.94 3.50 1.44 1.44 8.50 8/0.88 11.00 1.38 3.88 2.00 2.00 9.25 8/0.88
6 11.00 1.00 3.50 1.56 1.56 9.50 8/0.88 12.50 1.44 3.88 2.06 2.06 10.62 12/0.88
8 13.50 1.12 4.00 1.75 1.75 11.75 8/0.88 15.00 1.62 4.38 2.44 2.44 13.00 12/1.00
10 16.00 1.19 4.00 1.94 1.94 14.25 12/1.00 17.50 1.88 4.62 2.62 3.75 15.25 16/1.12
12 19.00 1.25 4.50 2.19 2.19 17.00 12/1.00 20.50 2.00 5.12 2.88 4.00 17.75 16/1.25
14 21.00 1.38 5.00 2.25 3.12 18.75 12/1.12 23.00 2.12 5.62 3.00 4.38 20.25 20/1.25
16 23.50 1.44 5.00 2.50 3.44 21.25 16/1.12 25.25 2.25 5.75 3.25 4.75 22.50 20/1.38
18 25.00 1.56 5.50 2.69 3.81 22.75 16/1.25 28.00 2.38 6.25 3.50 5.12 24.75 24/1.38
20 27.50 1.69 5.69 2.88 4.06 25.00 20/1.25 30.50 2.50 6.38 3.75 5.50 27.00 24/1.38
24 32.00 1.88 6.00 3.25 4.38 29.50 20/1.38 36.00 2.75 6.62 4.19 6.00 32.00 24/1.62
Flange Dimensions — Class 400 and Class 600
Nom
Pipe
Size		 CLASS 400 CLASS 600
O C** Y** Bolt
Circle		 No. And
Size
Holes		 O C** Y** Bolt
Circle		 No. And
Size
Holes
Weld
Neck		 Slip-On
Thrd.
Socket		 Lap
Joint		 Weld
Neck		 Slip-On
Thrd.
Socket		 Lap
Joint
1/2 3.75 0.56 2.06 0.88 0.88 2.62 4/0.62 3.75 0.56 2.06 0.88 0.88 2.62 4/0.62
3/4 4.62 0.62 2.25 1.00 1.00 3.25 4/0.75 4.62 0.62 2.25 1.00 1.00 3.25 4/0.75
1 4.88 0.69 2.44 1.06 1.06 3.50 4/0.75 4.88 0.69 2.44 1.06 1.06 3.50 4/0.75
1 1/4 5.25 0.81 2.62 1.12 1.12 3.88 4/0.75 5.25 0.81 2.62 1.12 1.12 3.88 4/0.75
1 1/2 6.12 0.88 2.75 1.25 1.25 4.50 4/0.88 6.12 0.88 2.75 1.25 1.25 4.50 4/0.88
2 6.50 1.00 2.88 1.44 1.44 5.00 8/0.75 6.50 1.00 2.88 1.44 1.44 5.00 8/0.75
2 1/2 7.50 1.12 3.12 1.62 1.62 5.88 8/0.88 7.50 1.12 3.12 1.62 1.62 5.88 8/0.88
3 8.25 1.25 3.25 1.81 1.81 6.62 8/0.88 8.25 1.25 3.25 1.81 1.81 6.62 8/0.88
3 1/2 9.00 1.38 3.38 1.94 1.94 7.25 8/1.00 9.00 1.38 3.38 1.94 1.94 7.25 8/1.00
4 10.00 1.38 3.50 2.00 2.00 7.88 8/1.00 10.75 1.50 4.00 2.12 2.12 8.50 8/1.00
5 11.00 1.50 4.00 2.12 2.12 9.25 8/1.00 13.00 1.75 4.50 2.38 2.38 10.50 8/1.12
6 12.50 1.62 4.06 2.25 2.25 10.62 12/1.00 14.00 1.88 4.62 2.62 2.62 11.50 12/1.12
8 15.00 1.88 4.62 2.69 2.69 13.00 12/1.12 16.50 2.19 5.25 3.00 3.00 13.75 12/1.25
10 17.50 2.12 4.88 2.88 4.00 15.25 16/1.25 20.00 2.50 6.00 3.38 4.38 17.00 16/1.38
12 20.50 2.25 5.38 3.12 4.25 17.75 16/1.38 22.00 2.62 6.12 3.62 4.62 19.25 20/1.38
14 23.00 2.38 5.88 3.31 4.62 20.25 20/1.38 23.75 2.75 6.50 3.69 5.00 20.75 20/1.50
16 25.50 2.50 6.00 3.69 5.00 22.50 20/1.50 27.00 3.00 7.00 4.19 5.50 23.75 20/1.62
18 28.00 2.62 6.50 3.88 5.38 24.75 24/1.50 29.25 3.25 7.25 4.62 6.00 25.75 20/1.75
20 30.50 2.75 6.62 4.00 5.75 27.00 24/1.62 32.00 3.50 7.50 5.00 6.50 28.50 24/1.75
24 36.00 3.00 6.88 4.50 6.25 32.00 24/1.88 37.00 4.00 8.00 5.50 7.25 33.00 24/2.00

ASME B16.5 Forged Flanges Weight Chart

NPS Dimensions In MM Weight In Kilogram
Normal Pipe Size
(Inch.)		 DN (Millimeter) FLANGES
O.D.
MM
MM		 FLANGE
Thickness.

D

MM		 SORF
SW		 WNRF BLRF
1/2 15 88.9 11.2 0.4 0.5 0.4
3/4 20 98.6 12.7 0.6 0.7 0.6
1 25 108 14.2 0.8 1 0.9
1 1/4 32 117.3 15.7 1 1.3 1.2
1 1/2 40 127 17.5 1.3 1.7 1.5
2 50 152.4 19.1 2.1 2.6 2.4
2 1/2 65 177.8 22.4 3.3 4.1 3.9
3 80 190.5 23.9 3.9 4.9 4.9
3 1/2 90 215.9 23.9 4.8 6.1 6.2
4 100 228.6 23.9 5.3 6.8 7.0
5 125 254 23.9 6.1 8.6 8.6
6 150 279.4 25.4 7.5 10.6 11.3
8 200 342.9 28.4 12.1 17.6 19.6
10 250 406.4 30.2 16.5 24 28.6
12 300 482.6 31.8 26.2 36.5 43.2
14 350 533.4 35.1 34.6 48.4 58.1
16 400 596.9 36.6 44.8 60.6 76.1
18 450 635 39.6 48.9 68.3 93.7
20 500 698.5 42.9 61.9 84.5 122.0
24 600 812.8 47.8 86.9 115 185.0

Other Types Of Raised Face Forged Flange

  • ASME B16.47 Forged Flange
  • Stainless Steel Forged Flanges
  • Class 600 Forged Flange
  • Forged Plate Flanges
  • Titanium Forged Flange
  • PN25 Forged Flange
  • BS4504 PN16 Forged Flange
  • Class 600 Forged Flange
  • ANSI B16.5 Forged Flanges
  • Monel Raised Face Forged Flange
  • Super Duplex Forged Flanges
  • EN 1092-1 Forged Flange
  • ANSI B16.5 Forged Raised Face Flanges
  • Inconel Forged Flange Manufacturer
  • Class 75 Forged Plate Flange
  • DIN Standard PN25 Forged Flanges
  • Stainless Steel Forged Flange
  • ANSI B16.5 Class 1500 Forged Flange Exporter
  • ANSI #150 Forged Flanges
  • 8 Inch Forged Flanges
  • ASME B16.5 Forged Flanges
  • Copper Nickel Forged Flanges Distributor
  • Alloy 20 Forged Plate Flanges
  • Raised Face Forged Flanges
  • 254 SMO Forged Flanges
  • Flat Faced Forged Flanges Stockholder
  • BS4504 Large Diameter Forged Flange
  • AWWA C207 Class D Raised Face Forged Flange
  • Table E Forged Flanges
  • SS Forged Flanges Stockist
  • ANSI B16.5 Forged Flanges Supplier in Mumbai
  • Incoloy Raised Face Forged Flange
  • PN16/3 Forged Flanges
  • JIS B2220 5K 10K Forged Flanges
  • ASME B16.5 Forged Flange Price List
  • Stainless Steel Raised Face Forged Flanges
  • ASME B16.5 Forged Flanges
  • Alloy Steel Forged Flanges
  • Duplex Steel Forged Flange Manufacturer
  • Titanium Forged Flanges
  • JIS 16K Forged Flange
  • ASME B16.47 Series A and B Forged Flanges
  • Forged Flanges
  • High Nickel Alloy Forged Flanges
  • Hastelloy Forged Flanges
  • Carbon Steel Forged Flanges
  • Brass Forged Raised Face Flanges
  • Carbon Steel A105 Forged Flanges
  • Nickel Alloy Forged Flanges
  • API 6A Forged Flange
