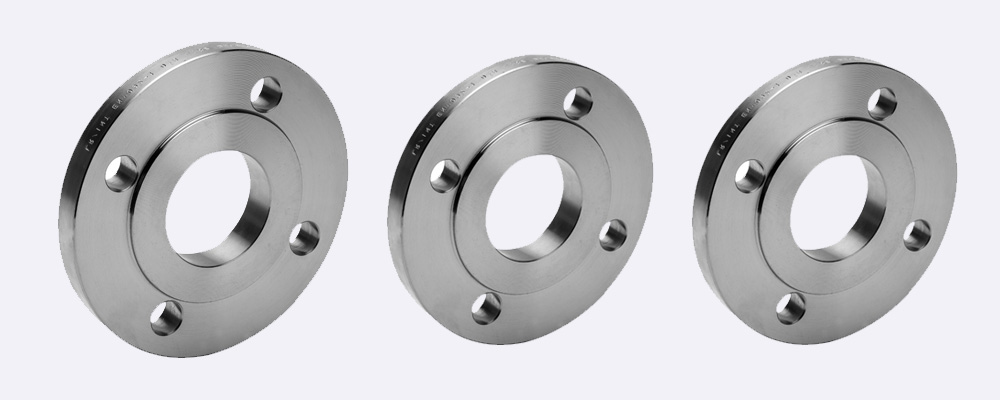

Slip on Flanges, Stainless Steel Slip on Flanges, ANSI B16.5 SORF Flanges

Stainless Steel 304 Pipe Fittings are made up of 18/8 chromium nickel alloy steels. The material has 18% chromium and 8%nickel in its composition. This makes the material to be stronger with 215MPa minimum yield strength and 505MPa minimum tensile strength. Stainless Steel 304 Pipe Fittings are made up of 18/8 chromium nickel alloy steels. The material has 18% chromium and 8%nickel in its composition. This makes the material to be stronger with 215MPa minimum yield strength and 505MPa minimum tensile strength. Stainless Steel 304 Pipe Fittings are made up of 18/8 chromium nickel alloy steels. The material has 18% chromium and 8%nickel in its composition. This makes the material to be stronger with 215MPa minimum yield strength and 505MPa minimum tensile strength.

Size Chart	1/2" (15 NB) to 48" (1200NB) DN10~DN5000
Standards	ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ASME Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ASME B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092
Pressure Rating ANSI	Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS
DIN	6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64
JIS	5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K
UNI	6Bar 10Bar 16Bar 25Bar 40Bar
EN	6Bar 10Bar 16Bar 25Bar 40Bar
Coating	Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized
Most Common Types	Forged / Threaded / Screwed / Plate
Test Certificates	EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc
Production technique	Forged, Heat treated and machined
Connect Type/ Flange Face Type	Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove
Special design	As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2") to 200 NB (8") Equal and Reducing Configurations
Test	Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector
Equipment	Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc
Origin	Indian / West Europe / Japan / USA / Korean
Manufacturer of	ASME DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. ANSI B16.5 Class 150 Socket Weld Flanges: -BS Flange, EN Flange, API 6A Flanges, ASME Flanges, ASME Flanges, DIN Flanges, EN1092-1 Flanges, UNI Flanges, JIS/ KS Flanges, BS4504 Flanges, GB Flanges, AWWA C207 Flanges, GOST Flanges, PSI Flangse B.S: BS4504 , BS3293, BS1560, BS10 AS 2129: Table D; Table E; Table H ASME B16.5, ASME B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings ASME : ASME B16.5, ASME B16.47(API605), MSS SP44, ASME B16.36, ASME B16.48 ASME B16.5, ASME B16.47, MSS SP44, ASME B16.36, ASME B16.48 American standard (ANSI) German (DIN) British standard (BS) DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638 The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203; UNI2276

Size Chart

1/2" (15 NB) to 48" (1200NB) DN10~DN5000

Standards

ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ASME Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ASME B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092

Pressure Rating ANSI

Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS

DIN

6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64

JIS

5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K

UNI

6Bar 10Bar 16Bar 25Bar 40Bar

Coating

Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized

Most Common Types

Forged / Threaded / Screwed / Plate

Test Certificates

EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc

Production technique

Forged, Heat treated and machined

Connect Type/ Flange Face Type

Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove

Special design

As per your drawing
AS, ANSI, BS, DIN and JIS
15 NB (1/2") to 200 NB (8")
Equal and Reducing Configurations

Test

Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector

Equipment

Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc

Origin

Indian / West Europe / Japan / USA / Korean

Manufacturer of

ASME DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc.
ANSI B16.5 Class 150 Socket Weld Flanges: -BS Flange, EN Flange, API 6A Flanges, ASME Flanges, ASME Flanges, DIN Flanges, EN1092-1 Flanges, UNI Flanges, JIS/ KS Flanges, BS4504 Flanges, GB Flanges, AWWA C207 Flanges, GOST Flanges, PSI Flangse

B.S: BS4504 , BS3293, BS1560, BS10
AS 2129: Table D; Table E; Table H
ASME B16.5, ASME B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
ASME : ASME B16.5, ASME B16.47(API605), MSS SP44, ASME B16.36, ASME B16.48
ASME B16.5, ASME B16.47, MSS SP44, ASME B16.36, ASME B16.48
American standard (ANSI)
German (DIN)
British standard (BS)
DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638
The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203; UNI2276

Stainless Steel Slip-On Flanges	ASTM/ASME A/SA182 F304, F304L, F316, F316L, ASTM/ASME A/SA351 CF8, CF3, CF8M, CF3M, DIN 1.4301, DIN 1.4306, DIN 1.4401, DIN 1.4404, DIN 1.4308, DIN 1.4408, DIN 1.4306, DIN 1.4409
Carbon Steel Slip-On Flanges	ASTM/ASME A/SA105 A/SA105N & A/SA216-WCB, DIN 1.0402, DIN 1.0460, DIN 1.0619, Die Steel, ASTM A105 / ASME SA105, A105N, ASTM A350 LF2 / ASME SA350, High Yield CS ASTM A694 / A694 (F52 F56 F60 F65 F70 F80)
Nickel Alloy Slip-On Flanges	ASTM B564 / ASME SB564, Nickel 200, Nickel 201, Nickel 205, Nickel 205LC
Duplex Steel Slip-On Flanges	S31803 / S32205 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Super Duplex Slip-On Flanges	S32750 / S32760 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Incoloy Slip-On Flanges	ASTM B564 / ASME SB564, Incoloy 800, 800H, 800HT (UNS N08800), 825 (UNS N08825), 925 Flanges
254 SMO Slip-On Flanges	ASTM A182 / ASME SA182, SMO 254/6Mo, UNS S31254, DIN 1.4547
Alloy Steel Slip-On Flanges	ASTM A182 / ASME SA182 F5, F9, F11, F12, F22, F91
Titanium Slip-On Flanges	ASTM B381 / ASME SB381, Titanium Gr. 1, Titanium Gr. 2, Titanium Gr. 4, Titanium Gr. 5, Titanium Gr. 7 ASTM R50250/GR.1 \| R50400/GR.2 \| R50550/GR.3 \| R50700/GR.4 \| GR.6 \|R52400/GR.7 \| R53400/GR.12 \| R56320/GR.9 \|R56400/GR.5
Copper Slip-On Flanges	T1, T2, C10100, C10200, C10300, C10400, C10500, C10700, C10800, C10910,C10920, TP1, TP2, C10930, C11000, C11300, C11400, C11500, C11600, C12000,C12200, C12300, TU1, TU2, C12500, C14200, C14420, C14500, C14510, C14520, C14530, C17200, C19200, C21000, C23000, C26000, C27000, C27400, C28000, C33000, C33200, C37000, C44300, C44400, C44500, C60800, C63020, C68700, C70400, C70600, C70620, C71000, C71500, C71520, C71640, etc
Copper Nickel Slip-On Flanges	ASTM / ASME SB 61 / 62 / 151 / 152, Copper Nickel 90/10 (C70600 ), Cupro Nickel 70/30 (C71500), UNS C71640
Inconel Slip-On Flanges	ASTM B564 / ASME SB564, Inconel 600, 601, 625, 718, 783, 690, x750 ANSI B16.5 Class 150 Slip-On Flanges
Hastelloy Slip-On Flanges	ASTM B564 / ASME SB564, Hastelloy C276 (UNS N10276), C22 (UNS N06022), C4, C2000, B2, B3, X Flanges
Monel Slip-On Flanges	ASTM B564 / ASME SB564, Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500)
Alloy 20 Slip-On Flanges	ASTM B462 / ASME SB462, Carpenter® 20 Alloy, Alloy 20Cb-3
Aluminium Slip-On Flanges	5052 /6061/ 6063 / 2017 / 7075 / etc.
Nimonic Slip-On Flanges	Nimonic 75, Nimonic 80A, Nimonic 90
Brass Slip-On Flanges	3602 / 2604 / H59 / H62 / etc.
Other Slip-On Flanges material	Tin bronze, Alumunum bronze, Lead bronze

ANSI/ASME/ASA B16.5 150lb/sq.in. Flanges SO-RF
ø	D	b	g	m	J	h	k	Holes	l	Kg.
1/2"	88,9	11,1	34,9	30,2	22,3	15,9	60,3	4	15,9	0,400
3/4"	98,4	12,7	42,9	38,1	27,7	15,9	69,8	4	15,9	0,700
1"	107,9	14,3	50,8	49,2	34,5	17,5	79,4	4	15,9	0,800
1 1/4"	117,5	15,9	63,5	58,8	43,2	20,6	88,9	4	15,9	1,100
1 1/2"	127,0	17,5	73,0	65,1	49,5	22,2	98,4	4	15,9	1,400
2"	152,4	19,0	92,1	77,8	62,0	25,4	120,6	4	19,0	2,200
2 1/2"	177,8	22,2	104,8	90,5	74,7	28,6	139,7	4	19,0	3,600
3"	190,5	23,8	127,0	107,9	90,7	30,2	152,4	4	19,0	4,100
3 1/2"	215,9	23,8	139,7	122,2	103,4	31,7	177,8	8	19,0	5,200
4"	228,6	23,8	157,2	134,9	116,1	33,3	190,5	8	19,0	5,600
5"	254,0	23,8	185,7	163,6	143,8	36,5	215,9	8	22,2	6,300
6"	279,4	25,4	215,9	192,1	170,7	39,7	241,3	8	22,2	7,500
8"	342,9	28,6	269,9	246,1	221,5	44,4	298,4	8	22,2	12,600
10"	406,4	30,2	323,8	304,8	276,3	49,2	361,9	12	25,4	18,500
12"	482,6	31,7	381,0	365,1	327,1	55,6	431,8	12	25,5	28,000
14"	533,4	34,9	412,7	400,0	359,1	57,1	476,2	12	28,6	36,000
16"	596,9	36,5	469,9	457,2	410,5	63,5	539,7	16	28,6	46,000
18"	635,0	39,7	533,4	504,8	461,8	68,3	577,8	16	31,7	50,000
20"	698,5	42,9	584,2	558,8	513,1	73,0	635,0	20	31,7	64,000
22"	749,3	46,0	641,2	609,6	564,4	79,4	692,1	20	34,9	72,000
24"	812,8	47,6	692,1	663,6	615,9	82,5	749,3	20	34,9	89,000
ANSI/ASME/ASA B16.5 600lb/sq.in. Flanges WN-RF
ø	D	b	g	m	J	h	k	Holes	l	Kg.
1/2"	95,2	14,3	34,9	38,1	22,3	22,2	66,7	4	15,9	0,800
3/4"	117,5	15,9	42,9	47,6	27,7	25,4	82,5	4	19,0	1,400
1"	123,8	17,5	50,8	54,0	34,5	27,0	88,9	4	19,0	1,600
1 1/4"	133,3	20,6	63,5	63,5	43,2	28,6	98,4	4	19,0	2,100
1 1/2"	155,6	22,2	73,0	69,8	49,5	31,7	114,3	4	22,2	3,100
2"	165,1	25,4	92,1	84,1	62,0	36,5	127,0	8	19,0	3,700
2 1/2"	190,5	28,6	104,8	100,0	74,7	41,3	149,2	8	22,2	5,400
3"	209,5	31,7	127,0	117,5	90,7	46,0	168,3	8	22,2	7,300
3 1/2"	228,6	34,9	139,7	133,3	103,4	49,2	184,1	8	25,4	8,900
4"	273,0	38,1	157,2	152,4	116,1	54,0	215,9	8	25,4	11,800
5"	330,2	44,4	185,7	188,9	143,8	60,3	266,7	8	28,6	24,500
6"	355,6	47,6	215,9	222,2	170,7	66,7	292,1	12	28,6	29,500
8"	419,1	55,6	269,9	273,0	221,5	76,2	349,2	12	31,7	43,000
10"	508,0	63,5	323,8	342,8	276,3	85,7	431,8	16	34,9	70,000
12"	558,8	66,7	381,0	400,0	327,1	92,1	488,9	20	34,9	86,000
14"	603,2	69,8	412,7	431,8	359,1	93,7	527,0	20	38,1	100,000
16"	685,8	76,2	469,9	495,3	410,5	106,4	603,2	20	41,3	142,000
18"	742,9	82,5	533,4	546,1	461,8	117,5	654,0	20	44,4	175,000
20"	812,8	88,9	584,2	609,6	513,1	127,0	723,9	24	44,4	232,000
22"	869,9	95,2	641,2	666,7	564,4	133,3	777,9	24	47,6	292,000
24"	939,8	101,6	692,1	717,5	615,9	139,7	838,2	24	50,8	330,000

Rated Diameter	O.D. of Pipe	Flange Parameter	Neck Size	Size of R.F.	Bolts	Approx. Weight
DN	d1	D	d5	b	k	h	d3	r	d4	f	No. of holes	d2	KG
10	17.2	90	17.7	14	60	20	30	4	40	2	4	14	0.56
15	21.3	95	22	14	65	20	35	4	45	2	4	14	0.62
20	26.9	105	27.6	16	75	24	45	4	58	2	4	14	0.91
25	33.7	115	34.4	16	85	24	52	5	68	2	4	14	1.09
32	42.4	140	43.1	16	100	26	60	5	78	2	4	18	1.58
40	48.3	150	49	16	110	26	70	5	88	3	4	18	1.76
50	60.3	165	61.1	18	125	28	85	5	102	3	4	18	2.39
65	76.1	185	77.1	18	145	32	105	5	122	3	4	18	3.1
80	88.9	200	90.3	20	160	34	118	5	138	3	8	18	3.77
100	114.3	220	115.9	20	180	38	140	5	158	3	8	18	4.29
125	139.7	250	141.6	22	210	40	168	5	188	3	8	18	5.86
150	168.3	285	170.5	22	240	44	196	5	212	3	8	22	7.22
175	193.7	315	196.1	24	270	44	224	6	242	3	8	22	9.18
200	219.4	340	222	24	295	44	247	6	268	3	8	22	9.95
250	273	395	276	26	350	46	300	6	320	3	12	22	12.69
300	323.9	445	327	26	400	46	352	6	370	4	12	22	14.4
350	355.6	505	359	26	460	53	398	10	430	4	16	22	22.36
400	406.4	565	410	26	515	57	448	10	482	4	16	26	26.85
450	457	615	461	28	565	62	502	10	532	4	20	26	32.53
500	508	670	512	28	620	67	552	10	585	4	20	26	37.84
600	610	780	614	28	725	75	658	10	685	5	20	30	49.32
700	711	895	716	30	840	77	760	10	800	5	24	30	63.86
800	813	1015	818	32	950	84	864	10	905	5	24	33	85.19
900	914	1115	920	34	1050	88	969	10	1005	5	28	33	101.4
1000	1016	1230	1022	34	1160	92	1071	10	1110	5	28	36	119.7
