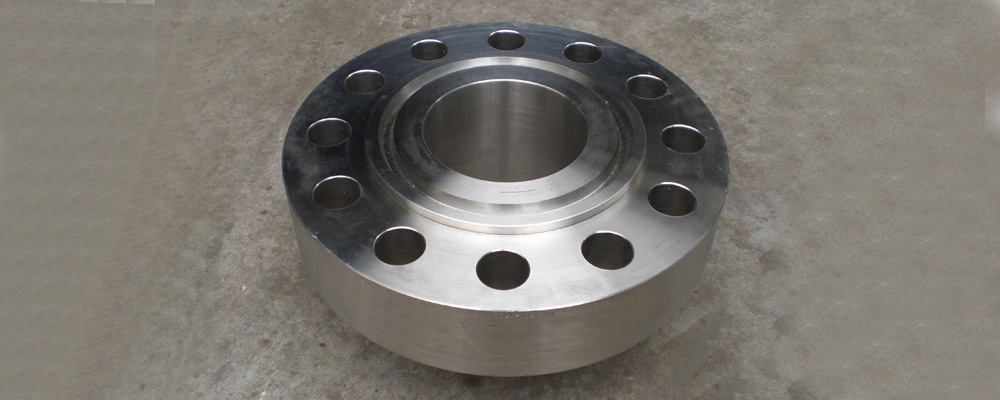

Ring Type Joint Flanges, Stainless Steel Ring Type Joint Flanges, ANSI B16.5 RTJ Flanges

Meanwhile, we provide qualitative this steel in distinct configurations and dimensions which might be being designed as in line with the country wide and international standard first-rate of raw materials. However, smooth surface end on this Hastelloy Alloy Ring Type Joint Flanges gives higher overall performance of steels. Our steel may be supplied in made to reserve period configurations and dimensions, and are available at marketplace main prices. Our steel is a part of the austenitic owns circle of relatives of stainless steel and they may be one of the maximum flexible and broadly used kinds of stainless plate. These steel are an exceptionally low cost stainless product and utilized in a sort of applications. Our steel may be supplied in made to reserve period configurations and dimensions, and are available at marketplace main prices. These steel also are fabricated and machined to fulfil up the piping wishes of our clients. Molybdenum on this steel is the number one alloying detail right here which offers extensive corrosion resistance to lowering environments. This Nickel Alloy Ring Type Joint Flanges has multiplied strength, remarkable hardness and put on resistance, in conjunction with mild corrosion resistance. This product are used for numerous applications inclusive of in Rolling detail bearings, High best knife blades, Valve seats, Chisels, Surgical instruments, and more.

We provide these products in special configurations and dimensions which might be being designed as in line with the country wide and international standard best of raw materials. Our product also can be supplied in custom designed period configurations and dimensions, and are available at marketplace main prices. This Alloy Steel Ring Type Joint Flanges are preferred characteristic grade this is regularly furnished within the toughened however nevertheless machineable shape for capabilities wherein multiplied strength and restrained heat and corrosion resistance are being wished. This product are getting used for numerous applications inclusive of in Cutlery, Steam and gas turbine blades, Kitchen utensils, Bolts, nuts, screws, and more.

Size Chart	1/2" (15 NB) to 48" (1200NB) DN10~DN5000
Standards	ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ASME Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ASME B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092
Pressure Rating ANSI	Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS
DIN	6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64
JIS	5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K
UNI	6Bar 10Bar 16Bar 25Bar 40Bar
EN	6Bar 10Bar 16Bar 25Bar 40Bar
Coating	Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized
Most Common Types	Forged / Threaded / Screwed / Plate
Test Certificates	EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc
Production technique	Forged, Heat treated and machined
Connect Type/ Flange Face Type	Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove
Special design	As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2") to 200 NB (8") Equal and Reducing Configurations
Test	Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector
Equipment	Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc
Origin	Indian / West Europe / Japan / USA / Korean
Manufacturer of	ASME DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. ANSI B16.5 Class 150 Socket Weld Flanges: -BS Flange, EN Flange, API 6A Flanges, ASME Flanges, ASME Flanges, DIN Flanges, EN1092-1 Flanges, UNI Flanges, JIS/ KS Flanges, BS4504 Flanges, GB Flanges, AWWA C207 Flanges, GOST Flanges, PSI Flangse B.S: BS4504 , BS3293, BS1560, BS10 AS 2129: Table D; Table E; Table H ASME B16.5, ASME B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings ASME : ASME B16.5, ASME B16.47(API605), MSS SP44, ASME B16.36, ASME B16.48 ASME B16.5, ASME B16.47, MSS SP44, ASME B16.36, ASME B16.48 American standard (ANSI) German (DIN) British standard (BS) DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638 The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203; UNI2276

Size Chart

1/2" (15 NB) to 48" (1200NB) DN10~DN5000

Standards

ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ASME Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ASME B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092

Pressure Rating ANSI

Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS

DIN

6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64

JIS

5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K

UNI

6Bar 10Bar 16Bar 25Bar 40Bar

Coating

Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized

Most Common Types

Forged / Threaded / Screwed / Plate

Test Certificates

EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc

Production technique

Forged, Heat treated and machined

Connect Type/ Flange Face Type

Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove

Special design

As per your drawing
AS, ANSI, BS, DIN and JIS
15 NB (1/2") to 200 NB (8")
Equal and Reducing Configurations

Test

Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector

Equipment

Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc

Origin

Indian / West Europe / Japan / USA / Korean

Manufacturer of

ASME DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc.
ANSI B16.5 Class 150 Socket Weld Flanges: -BS Flange, EN Flange, API 6A Flanges, ASME Flanges, ASME Flanges, DIN Flanges, EN1092-1 Flanges, UNI Flanges, JIS/ KS Flanges, BS4504 Flanges, GB Flanges, AWWA C207 Flanges, GOST Flanges, PSI Flangse

B.S: BS4504 , BS3293, BS1560, BS10
AS 2129: Table D; Table E; Table H
ASME B16.5, ASME B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
ASME : ASME B16.5, ASME B16.47(API605), MSS SP44, ASME B16.36, ASME B16.48
ASME B16.5, ASME B16.47, MSS SP44, ASME B16.36, ASME B16.48
American standard (ANSI)
German (DIN)
British standard (BS)
DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638
The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203; UNI2276

Stainless Steel Slip-On Flanges	ASTM/ASME A/SA182 F304, F304L, F316, F316L, ASTM/ASME A/SA351 CF8, CF3, CF8M, CF3M, DIN 1.4301, DIN 1.4306, DIN 1.4401, DIN 1.4404, DIN 1.4308, DIN 1.4408, DIN 1.4306, DIN 1.4409
Carbon Steel Slip-On Flanges	ASTM/ASME A/SA105 A/SA105N & A/SA216-WCB, DIN 1.0402, DIN 1.0460, DIN 1.0619, Die Steel, ASTM A105 / ASME SA105, A105N, ASTM A350 LF2 / ASME SA350, High Yield CS ASTM A694 / A694 (F52 F56 F60 F65 F70 F80)
Nickel Alloy Slip-On Flanges	ASTM B564 / ASME SB564, Nickel 200, Nickel 201, Nickel 205, Nickel 205LC
Duplex Steel Slip-On Flanges	S31803 / S32205 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Super Duplex Slip-On Flanges	S32750 / S32760 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Incoloy Slip-On Flanges	ASTM B564 / ASME SB564, Incoloy 800, 800H, 800HT (UNS N08800), 825 (UNS N08825), 925 Flanges
254 SMO Slip-On Flanges	ASTM A182 / ASME SA182, SMO 254/6Mo, UNS S31254, DIN 1.4547
Alloy Steel Slip-On Flanges	ASTM A182 / ASME SA182 F5, F9, F11, F12, F22, F91
Titanium Slip-On Flanges	ASTM B381 / ASME SB381, Titanium Gr. 1, Titanium Gr. 2, Titanium Gr. 4, Titanium Gr. 5, Titanium Gr. 7 ASTM R50250/GR.1 \| R50400/GR.2 \| R50550/GR.3 \| R50700/GR.4 \| GR.6 \|R52400/GR.7 \| R53400/GR.12 \| R56320/GR.9 \|R56400/GR.5
Copper Slip-On Flanges	T1, T2, C10100, C10200, C10300, C10400, C10500, C10700, C10800, C10910,C10920, TP1, TP2, C10930, C11000, C11300, C11400, C11500, C11600, C12000,C12200, C12300, TU1, TU2, C12500, C14200, C14420, C14500, C14510, C14520, C14530, C17200, C19200, C21000, C23000, C26000, C27000, C27400, C28000, C33000, C33200, C37000, C44300, C44400, C44500, C60800, C63020, C68700, C70400, C70600, C70620, C71000, C71500, C71520, C71640, etc
Copper Nickel Slip-On Flanges	ASTM / ASME SB 61 / 62 / 151 / 152, Copper Nickel 90/10 (C70600 ), Cupro Nickel 70/30 (C71500), UNS C71640
Inconel Slip-On Flanges	ASTM B564 / ASME SB564, Inconel 600, 601, 625, 718, 783, 690, x750 ANSI B16.5 Class 150 Slip-On Flanges
Hastelloy Slip-On Flanges	ASTM B564 / ASME SB564, Hastelloy C276 (UNS N10276), C22 (UNS N06022), C4, C2000, B2, B3, X Flanges
Monel Slip-On Flanges	ASTM B564 / ASME SB564, Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500)
Alloy 20 Slip-On Flanges	ASTM B462 / ASME SB462, Carpenter® 20 Alloy, Alloy 20Cb-3
Aluminium Slip-On Flanges	5052 /6061/ 6063 / 2017 / 7075 / etc.
Nimonic Slip-On Flanges	Nimonic 75, Nimonic 80A, Nimonic 90
Brass Slip-On Flanges	3602 / 2604 / H59 / H62 / etc.
Other Slip-On Flanges material	Tin bronze, Alumunum bronze, Lead bronze

Nominal Pipe Size	Pitch Diam. of Ring and Groove	Widthrong>of Ring	HEIGHT OF RING		Widthlat on Octagonal Rings	Widthroove	Depth of Groove	Diameter of Raised Face for Ring Joint or Lapped	Ring Number	Approximate Distande Between Flange of Ring Joints When Ring is Compressed
	Pitch Diam. of Ring and Groove	Widthrong>of Ring	OVal	Octagonal	Widthlat on Octagonal Rings	Widthroove	Depth of Groove	Diameter of Raised Face for Ring Joint or Lapped
	P	A	B	H	C	F	*E(L)**	K(Min)
1	47.6	8.0	14.3	12.7	5.2	8.7	6.4	63.5	R15	4.1
1 1/4	57.2	8.0	14.3	12.7	5.2	8.7	6.4	73.2	R17	4.1
1 1/2	65.1	8.0	14.3	12.7	5.2	8.7	6.4	82.6	R19	4.1
2	82.6	8.0	14.3	12.7	5.2	8.7	6.4	101.6	R22	4.1
2 1/2	101.6	8.0	14.3	12.7	5.2	8.7	6.4	120.7	R25	4.1
3	114.3	8.0	14.3	12.7	5.2	8.7	6.4	133.4	R29	4.1
3 1/2	131.8	8.0	14.3	12.7	5.2	8.7	6.4	153.9	R33	4.1
4	149.2	8.0	14.3	12.7	5.2	8.7	6.4	171.5	R36	4.1
5	171.5	8.0	14.3	12.7	5.2	8.7	6.4	193.5	R40	4.1
6	193.7	8.0	14.3	12.7	5.2	8.7	6.4	218.9	R43	4.1
8	247.7	8.0	14.3	12.7	5.2	8.7	6.4	273.1	R48	4.1
10	304.8	8.0	14.3	12.7	5.2	8.7	6.4	330.2	R52	4.1
12	381.0	8.0	14.3	12.7	5.2	8.7	6.4	406.4	R56	4.1
14	396.9	8.0	14.3	12.7	5.2	8.7	6.4	425.5	R59	3.0
16	454.0	8.0	14.3	12.7	5.2	8.7	6.4	482.6	R64	3.0
18	517.5	8.0	14.3	12.7	5.2	8.7	6.4	546.1	R68	3.0
20	558.8	8.0	14.3	12.7	5.2	8.7	6.4	596.9	R72	3.0
24	673.1	8.0	14.3	12.7	5.2	8.7	6.4	711.2	R76	3.0

NPS (Inches)	DN (mm)	FLANGE OD A MM	FLANGE THICKNESS D MM	SLIP ON FLANGE WEIGHT (KGS)	WELD NECK FLANGE WEIGHT (KGS)	BLIND FLANGE WEIGHT (KGS)
1/ 2	15	88.9	11.2	0.4	0.5	0.4
3/ 4	20	98.6	12.7	0.6	0.7	0.6
1	25	108	14.2	0.8	1	0.9
1 1/ 4	32	117.3	15.7	1	1.3	1.2
1 1/ 2	40	127	17.5	1.3	1.7	1.5
2	50	152.4	19.1	2.1	2.6	2.4
2 1/ 2	65	177.8	22.4	3.3	4.1	3.9
3	80	190.5	23.9	3.9	4.9	4.9
3 1/ 2	90	215.9	23.9	4.8	6.1	6.2
4	100	228.6	23.9	5.3	6.8	7.0
5	125	254	23.9	6.1	8.6	8.6
6	150	279.4	25.4	7.5	10.6	11.3
8	200	342.9	28.4	12.1	17.6	19.6
10	250	406.4	30.2	16.5	24	28.6
12	300	482.6	31.8	26.2	36.5	43.2
14	350	533.4	35.1	34.6	48.4	58.1
16	400	596.9	36.6	44.8	60.6	76.1
18	450	635	39.6	48.9	68.3	93.7
20	500	698.5	42.9	61.9	84.5	122.0
24	600	812.8	47.8	86.9	115	185.0

Ring Type Joint Flanges

SS Ring Type Joint Flange, Raised Face Ring Type Joint Flange, RTJ Flanges, Ring Type Joint Raised Face Flanges, Ring Type Joint Pipe Flanges, ANSI B16.5 Ring Type Joint Flanges Supplier in Mumbai, India.

ANSI

ASME

Pressure Rating

JIS

Standard Quality Specification Of Ring Type Joint Flanges

Material Grades of ANSI B16.5 Ring Type Joint Flanges

Manufacturer of Raised Face Ring Type Joint Flange, ANSI B16.5 Ring Type Joint Flange Wholesaler, ASME B16.47 Ring Type Joint Flange Price in India.

Check ASME B16.47 Series A Ring Type Joint Flange & 5K Ring Type Joint Flange Weight Chart & Dimensions.

Dimensions of Ring Type Joint Flanges

ASME B16.5 Ring Type Joint Flanges Weight Chart

Other Types Of Raised Face Ring Type Joint Flange

Ring Type Joint Raised Face Flanges SUPPLYING TO FOLLOWING REGIONS & COUNTRIES

Official info:

LOCATION
