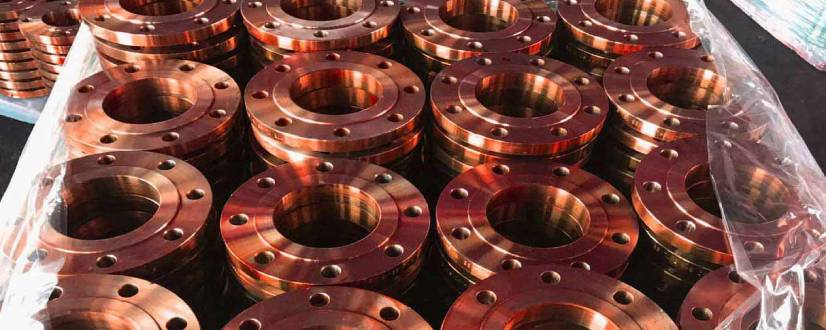

Copper Nickel 90/10 Flanges, Copper Nickel 90/10 Weld Neck Flanges, 90/10 Copper Nickel Lap Joint Flanges

Hot working in this steel needs to be completed through deciding on right temperatures. As nickel and copper are at the same time soluble in all proportions, this metallic is a single-section alloy. This metallic is still one of the maximum typically used corrosion resistant alloys commercially produced. Cu-Ni 90 / 10 Lap Joint Flanges is in particular immune to hydrochloric and hydrofluoric acids whilst they're de-aerated. This metallic is frequently utilized in electric and digital components; gasoline and sparkling water tanks; chemical processing equipment. This metallic also is utilized in boiler feeders, chemical plant equipment, and heat exchangers.

As might be predicted from its excessive copper content, this metallic is hastily attacked through nitric acid and ammonia systems. This metallic may be used in touch with hydrofluoric acid, fluorine, hydrogen fluoride or their derivatives. This metallic is likewise utilized in crude petroleum stills, boiler feedwater heaters, method vessels and piping; and different heat exchangers. This versatility makes this metallic appropriate for carrier in numerous environments. Copper Nickel UNS C70600 Weld Neck Flanges additionally plays excellently in seawater, due to the fact it's far without difficulty cold formable and weldable.Caution is counselled in applications for this product wherein sturdy nonmagnetic traits are desired. This product is broadly used in lots of fields, specially marine and chemical processing.

Resistance of this product to numerous corrosive situations caused its extensive use in marine applications and different non-oxidizing chloride answers. This product is hired for method vessels, garage tanks of gasoline, heat exchanger piping, and potable water within the marine sector. Strength and hardness of this product growth is with handiest a moderate lack of ductility and effect resistance. Typical applications of this product are valves and pumps; marine furniture and fasteners; pump and propeller shafts. This product additionally has properly ductility and thermal conductivity. Copper Nickel WNR 2.0872 Reducing Flanges has resistance to corrosion through many lowering media. This product is likewise frequently used for the excessive tolerance tubing.

Specifications	ASTM A151 / ASME SA151
Flanges size	1/2" (15 NB) to 48" (1200NB) DN10~DN5000
Flanges Dimensions	ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flange, ASME Flange, BS Flange, DIN Flange, EN Flange, GOST Flange.
Class / Pressure	150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
Flange Face Type	Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
Manufacturing Standards	ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange, ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE, BS Flange, EN Flange, API 6A Flange etc B.S: BS4504 , BS3293, BS1560, BS10 AS 2129: Table D; Table E; Table H ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings ANSI : ANSI B16.5, ANSI B16.47(API605), MSS SP44, ANSI B16.36, ANSI B16.48 ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48 American standard (ANSI) German (DIN) British standard (BS) Any other specilised Flange DIN: DIN 2527, DIN 2566, DIN 2573, UNS S45367 Flange, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638 The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203;UNI2276
Standard UNI	6Bar 10Bar 16Bar 25Bar 40Bar
Test Certificates	EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc
Flanges uses & application	Nuclear power (mostly seamless). Petrochemicals and acids. Bitumen upgraders. Heavy oil refineries.
Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175.

Specifications

ASTM A151 / ASME SA151

Flanges size

1/2" (15 NB) to 48" (1200NB) DN10~DN5000

Flanges Dimensions

ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flange, ASME Flange, BS Flange, DIN Flange, EN Flange, GOST Flange.

Class / Pressure

150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.

Flange Face Type

Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)

Manufacturing Standards

ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange, ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE, BS Flange, EN Flange, API 6A Flange etc
B.S: BS4504 , BS3293, BS1560, BS10
AS 2129: Table D; Table E; Table H
ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
ANSI : ANSI B16.5, ANSI B16.47(API605), MSS SP44, ANSI B16.36, ANSI B16.48
ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48
American standard (ANSI)
German (DIN)
British standard (BS)
Any other specilised Flange
DIN: DIN 2527, DIN 2566, DIN 2573, UNS S45367 Flange, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638
The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203;UNI2276

Standard UNI

6Bar 10Bar 16Bar 25Bar 40Bar

Test Certificates

EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc

Flanges uses & application

Nuclear power (mostly seamless).
Petrochemicals and acids.
Bitumen upgraders.
Heavy oil refineries.

Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175.

American Standard	Standard Code	ANSI ASME SA-182	ANSI ASME B16.5	ASME – B 16.47	ASME – B 16.36
	Standard Name	Forged Flanges	Slip on flange, Welding neck flange, Blind flange, Threaded flange, Lap joint flange, RTJ flange	Welding neck flange, Blind flange	Welding neck flange Slip on flange
German Standard	DIN 2527	DIN 2573 / 2576	DIN 2673	DIN 2641 / 2642	DIN 28115	DIN PN10, PN16	DIN PN20, PN25
	Steel Blind Flanges, BLRF	Flat Flange for Welding (Slip On)	Loose Flanges and Rings for Welding (Slip On Flanges and Plain Collars)	Lapped / Loose (Lap Joint) Flanges Plain Collars	Long Neck Welding Flanges	PN10 Flanges, DIN PN 10 Flanges, PN16 Flange	PN20 Flanges, DIN PN 25 Flanges
Japanese Standard	JIS B2220	JIS B2291	JIS 5K, 10K	JIS 16K, 20K	JIS 30K, 40K
	Slipon plate flange (SOP), Slipon Hub (SOH), Socket Welding flange (SW), Welding neck flange (WN), Lapjoint (LJ), Threaded flange (TR)/ Itegral flange (IT) Blank flange (BL)	Slipon plate flange (SOP), Slipon Hub (SOH), Socket Welding flange (SW), Welding neck flange (WN), Lapjoint (LJ), Threaded flange (TR)/ Itegral flange (IT) Blank flange (BL)	5K SORF Flanges, 10K SOFF Flanges	16K Blind Flanges, 20K BLRF Flanges	30K Slip on Flanges, 40K Blind Flanges
Italian Standard	UNI FLANGES
	Plan flanges (2276, 2277, 2278, 6083, 6084) Welding neck (2280, 2281, 2282, 2283, 2284, 2285, 2286) Lapped flanges (6088, 6089, 6090, 2999, 2300) Blind flanges (6091, 6092, 6093, 6094, 6095, 6096, 6097) threaded flanges (2253, 2254)
British Standard	BS 10 Table D	BS 10 Table E	BS 10 Table F	BS 10 Table H
	BS 10 Table D Flanges, Table D Pipe Flange	BS 10 Table E Flanges, Table E Pipe Flange	BS 10 Table E Flanges, Table E Flanges	BS 10 Table E Flanges, Table E Pipe Flanges

American Standard

Standard Code

ANSI ASME SA-182

ANSI ASME B16.5

ASME – B 16.47

ASME – B 16.36

Standard Name

Forged Flanges

Slip on flange, Welding neck flange, Blind flange, Threaded flange, Lap joint flange, RTJ flange

Welding neck flange, Blind flange

Welding neck flange Slip on flange

German Standard

DIN 2527

DIN 2573 / 2576

DIN 2673

DIN 2641 / 2642

DIN 28115

DIN PN10, PN16

DIN PN20, PN25

Steel Blind Flanges, BLRF

Flat Flange for Welding (Slip On)

Loose Flanges and Rings for Welding (Slip On Flanges and Plain Collars)

Lapped / Loose (Lap Joint) Flanges Plain Collars

Long Neck Welding Flanges

PN10 Flanges, DIN PN 10 Flanges, PN16 Flange

PN20 Flanges, DIN PN 25 Flanges

Japanese Standard

JIS B2220

JIS B2291

JIS 5K, 10K

JIS 16K, 20K

JIS 30K, 40K

Slipon plate flange (SOP), Slipon Hub (SOH), Socket Welding flange (SW), Welding neck flange (WN), Lapjoint (LJ), Threaded flange (TR)/ Itegral flange (IT) Blank flange (BL)

5K SORF Flanges, 10K SOFF Flanges

16K Blind Flanges, 20K BLRF Flanges

30K Slip on Flanges, 40K Blind Flanges

Italian Standard

UNI FLANGES

Plan flanges (2276, 2277, 2278, 6083, 6084) Welding neck (2280, 2281, 2282, 2283, 2284, 2285, 2286) Lapped flanges (6088, 6089, 6090, 2999, 2300) Blind flanges (6091, 6092, 6093, 6094, 6095, 6096, 6097) threaded flanges (2253, 2254)

British Standard

BS 10 Table D

BS 10 Table E

BS 10 Table F

BS 10 Table H

BS 10 Table D Flanges, Table D Pipe Flange

BS 10 Table E Flanges, Table E Pipe Flange

BS 10 Table E Flanges, Table E Flanges

BS 10 Table E Flanges, Table E Pipe Flanges

Nominal Pipe Size	Outside Diameter of Flanges	Thickness of Flanges	Diameter of Raised Face	Diameter of Hub at Base	Length Thru Hub	Diameter or Bore	Diameter of Hub at Bevel	Radius of Fillet	Depth of Socket
1/2	3-1/2	7/16	1-3/8	1-3/16	1-7/8	5/8	5/8	.88	.90	.84	1/8	3/8
3/4	3-7/8	1/2	1-11/16	1-1/2	2-1/16	5/8	5/8	1.09	1.11	1.05	1/8	7/16
1	4-1/4	9/16	2	1-15/16	2-3/16	11/16	11/16	1.36	1.38	1.32	1/8	1/2
1-1/4	4-5/8	5/8	2-1/2	2-5/16	2-1/4	13/16	13/16	1.70	1.72	1.66	3/16	9/16
1-1/2	5	11/16	2-7/8	2-9/16	2-7/16	7/8	7/8	1.95	1.97	1.90	1/4	5/8
2	6	3/4	3-5/8	3-1/16	2-1/2	1	1	2.44	2.46	2.38	5/16	11/16
2-1/2	7	7/8	4-1/8	3-9/16	2-3/4	1-1/8	1-1/8	2.94	2.97	2.88	5/16	3/4
3	7-1/2	15/16	5	4-1/4	2-3/4	1-3/16	1-3/16	3.57	3.60	3.50	3/8	13/16
3-1/2	8-1/2	15/16	5-1/2	4-13/16	2-13/16	1-1/4	1-1/4	4.07	4.10	4.00	3/8	7/8
4	9	15/16	6-3/16	5-5/16	3	1-5/16	1-5/16	4.57	4.60	4.50	7/16	15/16
5	10	15/16	7.5/16	6-7/16	3-1/2	1-7/16	1-7/16	5.66	5.69	5.56	7/16	15/16
6	11	1	8-1/2	7-9/16	3-1/2	1-9/16	1-9/16	6.72	6.75	6.63	1/2	1-1/16
8	13-1/2	1-1/8	10-5/8	9-11/16	4	1-3/4	1-3/4	8.72	8.75	8.63	1/2	1-1/4
10	16	1-3/16	12-3/4	12	4	1-15/16	1-15/16	10.88	10.92	10.75	1/2	1-5/16
12	19	1-1/4	15	14-3/8	4-1/2	2-3/16	2-3/16	12.88	12.92	12.75	1/2	1-9/16
14	21	1-3/8	16-1/4	15-3/4	5	2-1/4	3-1/8	14.14	14.18	14.00	1/2	1-5/8
16	23-1/2	1-7/16	18-1/2	18	5	2-1/2	3-7/16	16.16	16.19	16.00	1/2	1-3/4
18	25	1-9/16	21	19-7/8	5-1/2	2-11/16	3-13/16	18.18	18.20	18.00	1/2	1-15/16
20	27-1/2	1-11/16	23	22	5-11/16	2-7/8	4-1/16	20.20	20.25	20.00	1/2	2-1/8
24	32	1-7/8	27-1/4	26-1/8	6	3-1/4	4-3/8	24.25	24.25	24.00	1/2	2-1/2
