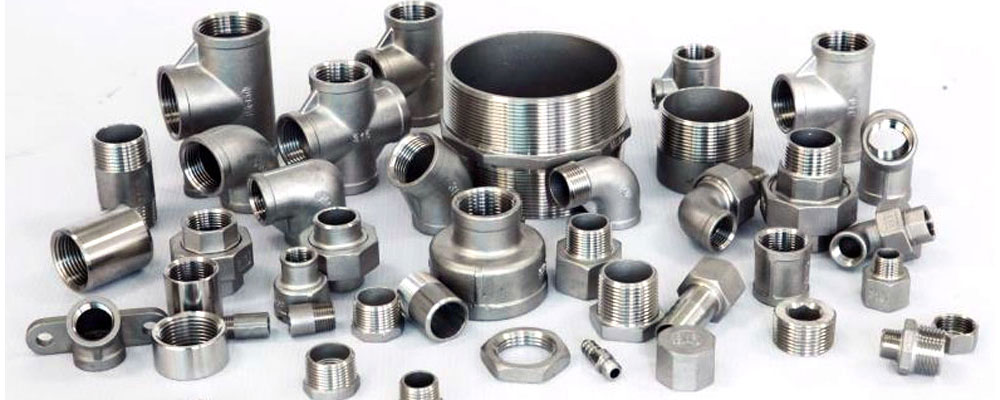

SS 316 Pipe Fittings, Stainless Steel 316L Elbow, 316 Stainless Steel Butt weld Fittings

Stainless Steel UNS S31600 Bend Pipe Fittings is as properly utilized in vehicle wheel covers, roof drainage products, tablewear, typhoon door frames, conveyor belts, sinks, subway vehicles and appliances. This product has true resistance in applications regarding outside persuasive to mildly corrosive situations at ambient temperatures. Stainless Steel WNR 1.4401 Long Radius Bend Pipe Fittings is utilized in Conveyor Belts, Home and business appliances, Mass transit systems, etc. This product is ductile and without difficulty formed however extreme forming or a couple of operations can also additionally require intermediate anneals because of its excessive work hardening rate. By means of having a super corrosion resistance, 316 Stainless Steel Piggable Bend Pipe Fittings may be without difficulty welded. Intermediate annealing of this product best serves to lessen the hardness and consequently ultimate properties. This product isn't always warmth-treatable for hardening functions and is non-magnetic as annealed, however barely magnetic following cold working.

This product carries a better percent of nitrogen and reveals a better work harden rate as compared to standard alloy. Stainless Steel UNS S31603 Elbow Pipe Fittings is an austenitic chromium-nickel stainless-steel that offers excessive strength and true ductility when cold worked. This product is likewise utilized in Aircraft structural parts, Trailer bodies, Architectural (roof drainage / door frames, etc.). Stainless Steel WNR 1.4404 Tee Pipe Fittings is an austenitic chromium-nickel alloy appropriate to be used in more excessive strength and hardness applications. It may be formed and drawn in which its hardness and strength makes it an in shape for structural applications. This approach that at room temperature, a basket product of this alloy can soak up to 33 % extra strain than a comparable basket. 316L Stainless Steel Cross Pipe Fittings gives the more excessive strength required for applications consisting of consistent pressure springs, variable pressure springs, snap bands, clips, fasteners and washers. This alloy is utilized in Automotive wheel industry, Aircraft structural parts, Railcar structural components, and so on.

Specifications	ASTM A403 / ASME SA403
Dimensions	ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size	Seamless Fittings: 1/2" - 10" Welded Fittings: 1/2" - 48"
Thickness	SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
Manufacturing Standards	ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 DIN : DIN2605, DIN2615, DIN2616, DIN2617, DIN28011, DN15-DN1200 BS : BS4504, BS4504, BS1560, BS10 JIS : JIS B2311, JIS B2312, JIS B2313, JIS B2316 GOST : GOST 17375, GOST 17376, GOST 30753, GOST 17378, GOST 17379, GOST 17380 EN: EN10253-1, EN10253-2
Types	Seamless / ERW / Welded / Fabricated
Connection	Welding
Bending Radius	R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Elbow	Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D. Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO
Manufacturing process	Push, Press, Forge, Cast, etc.
Specialized manufacturer of	90º Elbows, Couplings, Reducers, Inserts, Caps, Nipples, 45º Elbows, Tees, Crosses, Equal Tees & Reducing Tees
Test Certificates	EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc
Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175

Specifications

ASTM A403 / ASME SA403

Dimensions

ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799

Size

Seamless Fittings: 1/2" - 10"
Welded Fittings: 1/2" - 48"

Thickness

SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75

Manufacturing Standards

ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
DIN : DIN2605, DIN2615, DIN2616, DIN2617, DIN28011, DN15-DN1200
BS : BS4504, BS4504, BS1560, BS10
JIS : JIS B2311, JIS B2312, JIS B2313, JIS B2316
GOST : GOST 17375, GOST 17376, GOST 30753, GOST 17378, GOST 17379, GOST 17380
EN: EN10253-1, EN10253-2

Types

Seamless / ERW / Welded / Fabricated

Connection

Welding

Bending Radius

R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom

Elbow

Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D.
Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO

Manufacturing process

Push, Press, Forge, Cast, etc.

Specialized manufacturer of

90º Elbows, Couplings, Reducers, Inserts, Caps, Nipples, 45º Elbows, Tees, Crosses, Equal Tees & Reducing Tees

Test Certificates

EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc

Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175

Standard Code	Standard Name
American Steel Pipe Fittings Standard
ANSI ASME SA-403	Forged Durimet pipe fittings
ANSI ASME B16.9	Factory-Made wrought steel pipe fittings
ANSI ASME B16.28	Wrought steel butt-welding short radius elbows and returns
ISO 5251	Stainless steel butt-welding fittings
MSS SP-43	Wrought stainless steel butt-welding fittings
MSS SP-75	Forging butt-welding fittings
German Steel Pipe Fittings Standard
DIN 2605	Steel butt-welding pipe fittings.elbows and bends
DIN 2615	Steel butt-welding pipe fittings.tees
DIN 2616	Steel butt-welding pipe fittings.reducers
DIN 2617	Steel butt-welding pipe fittings.caps
Japanese Steel Pipe Fittings Standard
JIS B2311	Universal steel butt-welding pipe fittings
JIS B2312	Steel butt-welding pipe fittings
JIS B2313	Steel plate butt-welding pipe fittings
Other Steel Pipe Fittings Standard
EN 1025	3 Butt-welding pipe fittings

Standard Code

Standard Name

American Steel Pipe Fittings Standard

ANSI ASME SA-403

Forged Durimet pipe fittings

ANSI ASME B16.9

Factory-Made wrought steel pipe fittings

ANSI ASME B16.28

Wrought steel butt-welding short radius elbows and returns

ISO 5251

Stainless steel butt-welding fittings

MSS SP-43

Wrought stainless steel butt-welding fittings

MSS SP-75

Forging butt-welding fittings

German Steel Pipe Fittings Standard

DIN 2605

Steel butt-welding pipe fittings.elbows and bends

DIN 2615

Steel butt-welding pipe fittings.tees

DIN 2616

Steel butt-welding pipe fittings.reducers

DIN 2617

Steel butt-welding pipe fittings.caps

Japanese Steel Pipe Fittings Standard

JIS B2311

Universal steel butt-welding pipe fittings

JIS B2312

Steel butt-welding pipe fittings

JIS B2313

Steel plate butt-welding pipe fittings

Other Steel Pipe Fittings Standard

EN 1025

3 Butt-welding pipe fittings

Nominal Diameter	O.D.For Bevel End	I.D.For End	Wall Thickness	Elbow	Tee	Reducer	Cap	180°Elbow
DN	NPS	A	B	C	M	H	E	O	K	Roughness
15-65	1/2-2 1/2	+1.6/-0.8	0.8	-12.50%	1.6	1.6	1.6	1.6	1.6	3.2	6.4	6.4	0.8
80-100	3-4	1.6	1.6	6.4
125-200	5-8	+2.4/-1.6
250-450	10-18	+4/-3.2	3.2	2.4	2.4	2.4	2.4	2.4	9.6
500-600	20-24	+6.4/-4.8	4.8	3.2	3.2	3.2	3.2	4.8	9.6
650-750	26-30
4.8	4.8	4.8	4.8
800-1200	32-48
1250-1500	50-60	+9.6/-6.4	6.4	9.6	9.6	9.6	9.6	9.6
1550-1750	62-70	+12.7/-9.6	9.6	12.7	12.7
1800-2000	72-80	+16/-12	12	16	16

Nominal Diameter

O.D.For Bevel End

I.D.For End

Wall Thickness

Elbow

Tee

Reducer

Cap

180°Elbow

NPS

Roughness

15-65

1/2-2 1/2

+1.6/-0.8

0.8

-12.50%

1.6

3.2

6.4

0.8

80-100

3-4

1.6

6.4

125-200

5-8

+2.4/-1.6

250-450

10-18

+4/-3.2

3.2

2.4

9.6

500-600

20-24

+6.4/-4.8

4.8

3.2

4.8

9.6

650-750

26-30

4.8

800-1200

32-48

1250-1500

50-60

+9.6/-6.4

6.4

9.6

1550-1750

62-70

+12.7/-9.6

9.6

12.7

1800-2000

72-80

+16/-12

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN
SS 316	1.4401 / 1.4436	S31600	SUS 316	316S31 / 316S33	-	Z7CND17‐11‐02	X5CrNiMo17-12-2 / X3CrNiMo17-13-3
SS 316L	1.4404 / 1.4435	S31603	SUS 316L	316S11 / 316S13	03Ch17N14M3 / 03Ch17N14M2	Z3CND17‐11‐02 / Z3CND18‐14‐03	X2CrNiMo17-12-2 / X2CrNiMo18-14-3

Seamless/ Welded 100% Radiography Tested
Products		Size
ASTM A403 SS 316 Elbow – Long Radius	ASTM A403 SS 316L 45° Elbow	Sizes 1/2″ – 48″
ASTM A403 SS 316 Fabricated Tee	ASTM A403 SS 316L End Cap
ASTM A403 SS 316 Reducer	ASTM A403 SS 316L Tee
ASTM A403 SS 316 3D Elbow	ASTM A403 SS 316L 5D Elbow
ASTM A403 SS 316 Stub End	ASTM A403 SS 316L Pipe Bend
ASTM A403 SS 316 Reducing Elbow	ASTM A403 SS 316L Pipe Nipple
ASTM A403 SS 316 Reducing Cross	ASTM A403 SS 316L Eccentric Reducer
ASTM A403 SS 316 Concentric Reducer	ASTM A403 SS 316L Welded Fittings
ASTM A403 SS 316 Elbow – Short Radius	ASTM A403 SS 316L Cross

Product range and theoretical weights (kg)
DN	Schedule 10S			Schedule 40S			Schedule 80S
DN	90° Elbow	45° Elbow	Equal tee	90° Elbow	45° Elbow	Equal tee	90° Elbow	45° Elbow	Equal tee
8	0.02	0.01	0.03	0.03	0.02	0.06	0.04	0.03	0.07
10	0.03	0.02	0.05	0.03	0.02	0.03	0.06	0.04	0.09
15	0.06	0.03	0.09	0.08	0.04	0.10	0.10	0.05	0.14
20	0.07	0.03	0.13	0.08	0.04	0.17	0.11	0.05	0.20
25	0.14	0.08	0.28	0.15	0.11	0.29	0.22	0.14	0.38
32	0.23	0.11	0.49	0.26	0.17	0.59	0.40	0.23	0.68
40	0.30	0.17	0.68	0.40	0.23	0.86	0.51	0.29	1.02
50	0.50	0.25	0.85	0.70	0.4	1.28	0.91	0.59	1.59
65	0.85	0.48	1.41	1.40	0.77	2.19	1.81	0.99	3.13
80	1.25	0.63	1.77	2.20	1.08	3.31	2.97	1.50	4.45
90	1.70	0.75	2.67	2.83	1.42	4.08	4.00	2.00	5.44
100	2.10	1.08	3.46	4.47	2.09	5.27	6.18	2.81	7.71
150	5.45	2.72	8.07	10.89	5.44	10.99	16.32	8.16	13.61
200	10.20	5.33	15.65	21.54	10.77	20.91	33.11	16.56	28.12
250	18.15	9.75	26.46	38.56	19.27	35.38	51.71	25.86	49.90
300	25.80	13.62	39.46	59.42	29.71	62.14	79.38	39.69	83.91

Product range and theoretical weights (kg)
DN	Schedule 10S			Schedule 40S			Schedule 80S
DN	Con reducer	Ecc reducer	Reducing tee	Con reducer	Ecc reducer	Reducing tee	Con reducer	Ecc reducer	Reducing tee
40x.25	0.19	0.19	0.60	0.26	0.26	0.76	0.34	0.34	0.90
50x25	0.28	0.28	0.73	0.40	0.40	1.10	0.54	0.54	1.37
50x40	0.31	0.31	0.76	0.45	0.45	1.15	0.59	0.59	1.43
80x.50	0.55	0.55	1.56	1.00	1.00	2.91	1.79	1.79	3.91
100x50	0.78	0.78	2.94	1.50	1.50	4.48	1.95	1.95	6.55
100x80	0.87	0.87	3.04	1.74	1.74	4.64	2.33	2.33	6.79
150x80	1.82	1.82	6.86	3.95	3.95	9.68	5.51	5.51	11.57
150x100	1.96	1.96	7.10	4.07	4.07	11.94	5.96	5.96	11.97
200x100	3.01	3.01	13.46	6.55	6.55	17.98	9.23	9.23	24.18
200x150	3.19	3.19	14.08	6.74	6.74	18.82	10.12	10.12	25.31

Grade	C	Mn	Si	P	S	Cr	Mo	Ni	N
SS 316/316L	0.08 max	2 max	0.75 max	0.045 max	0.030 max	18 – 20	-	8 – 11	-

Stainless Steel 316L Pipe Fittings

316 Stainless Steel Pipe Fittings, Stainless Steel 316L Buttweld Fittings, 316 Stainless Steel 90 degree Elbow, SS 316L Pipe Fittings, ASTM A403 WP316 Elbow Supplier in Mumbai, India.

Grade

UNS

WERKSTOFF NR.

ASTM / ASME

Buy 316 Stainless Steel Reducer, Stainless Steel 316L Pipe Tee, SS 316 Pipe Cap, UNS S31600 Butt weld Fittings, SS 316 Pipe Elbow Dealer, DIN 1.4401 Pipe Fittings, ANSI B16.9 SS 316 Stub End, SS 316L 45 Degree Elbow Manufacturer in India.

Standard Quality Specification Of SS 316 / 316L Pipe Fittings

Available Types Of SS 316 / 316L Buttweld Pipe Fittings

SS 316 / 316L Elbow

SS 316 / 316L Reducer

SS 316 / 316L Stub End

SS 316 / 316L Tee

SS 316 / 316L Cross

SS 316 / 316L Pipe Cap

Equivalent Grade Of 316 / 316L Stainless Steel Pipe Fittings

ASTM A403 SS 316 / 316L Stainless Steel Pipe Fittings

Manufacturer of Stainless Steel 316 Seamless Pipe Fittings, ANSI B16.9 SS 316L Welded Fittings Wholesaler, 316 SS Pipe Bend Price in India.

Check ASTM A403 WP316 Cap & 316L Stainless Steel Buttweld Fittings Weight Chart & Dimensions.

International Standards of SS 316 / 316L Buttweld Fittings

Stainless Steel 316 / 316L Buttweld Fittings Thickness Chart

Stainless Steel 316 / 316L Pipe Fittings Tolerance Chart

Chemical Composition of 316 / 316L SS Butt weld Fittings

Mechanical Properties of SS 316 / 316L Pipe Fittings

Other Types Of Stainless Steel 316 / 316L Pipe Fittings

SS 316 / 316L Pipe Fittings SUPPLYING TO FOLLOWING REGIONS & COUNTRIES

Official info:

LOCATION

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
8.0 g/cm3	1400 °C (2550 °F)	Psi – 75000 , MPa – 515	Psi – 30000 , MPa – 205	35 %
