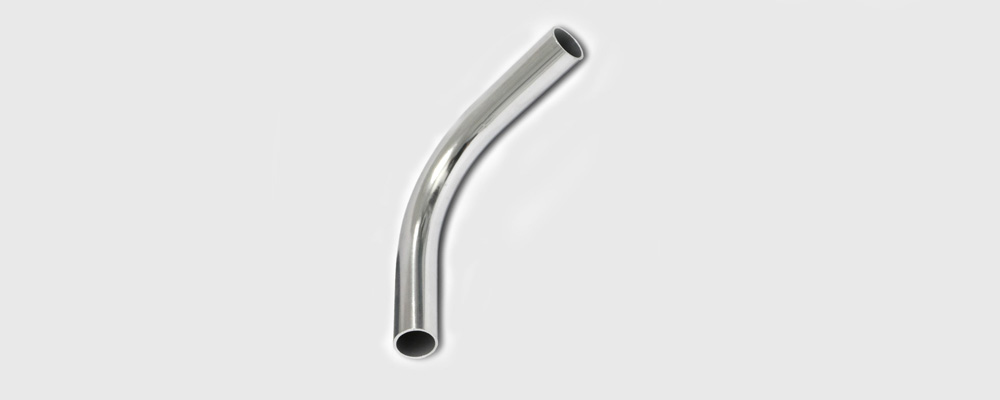

Long Radius Bend, Stainless Steel Welded Long Radius Bend, ANSI B16.9 Buttweld Long Radius Bend

To meet the exceptional aware necessities for our fantastically esteemed clients, we provide these products in one-of-a-kind sizes, grades and thickness as consistent in company of having custom-based designed necessities given through our customers. We provide qualitative these Titanium Alloy Long Radius Bend Pipe Fittings in one-of-a-kind configurations and dimensions which are being designed as consistent in company of the country wide and international standard exceptional of raw materials. This steel also can be presented in made to reserve duration configurations and dimensions, and is likewise available at marketplace main prices. Our steel presents superb resistance to oxidation and corrosion and possesses properly creep strength. Meanwhile, regular makes use of this steel encompass annealing covers, excessive-temperature tempering system, diesel and heavy obligation automobile exhaust systems. This steel is likewise utilized in firewalls, stack liners, boiler casings, welded stress vessels, jet plane components, radiant superheaters, bellows and oil refinery system. This Alloy 20 Long Radius Bend Pipe Fittings may be used for complete durations at excessive temperatures devoid of compromising its corrosion resistance. Due to their excessive chromium and nickel content, this steel is fantastically corrosion resistant, has high-quality resistance to oxidation and superb heat resistance even as supplying properly strength at room and accelerated temperatures.

This steel is taken into consideration the maximum versatile, maximum extensively used, and is available in extra forms and finishes than another grade of steel. It has equal corrosion resistance to sensitization because the low carbon model. This product is austenitic molybdenum-bearing product this is extra immune to not unusual corrosion and crevice / pitting corrosion than the same old nickel-chromium austenitic product. This Copper Nickel Long Radius Bend Pipe Fittings offer tensile and strain-to-rupture efficiency, at the side of better creep at excessive temperatures. This product that include 3 to 4 percentage of molybdenum are favoured to that include in home equipment that require stepped forward pitting and not unusual corrosion resistance.

Dimensions	ASME B16.25, B16.28, MSS-SP-43, ANSI/ASME B16.9
Fabricated Size	1/2" (15 NB) to 48" (1200NB)
Seamless Size	1/2"~24"
Thickness	5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS available with NACE MR 01-75
Schedule	SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Type	Welded, Seamless, Fabricated

Stainless Steel Long Radius Bend	ASTM A403 WP316, 316L, WP304, 304L, ASTM A182 F316L, 304L, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404
Alloy Steel Long Radius Bend	ASTM A234, ASME SA234 WP1, WP5, WP9, WP11, WP22, WP91
Super Duplex Long Radius Bend	ASTM A815 / ASME SA815 UNS No S32750, S32950
Duplex Steel Long Radius Bend	ASTM A815 / ASME SA815 UNS No S31803, S32205
Nickel Alloy Long Radius Bend	ASTM B336, ASME SB336, Nickel 200 (UNS N02200), Nickel 201 (UNS N02201), Monel 400 (UNS N04400), Monel 500 (UNS N05500), Inconel 800 (UNS N08800), Inconel 825 (UNS N08825), Inconel 600 (UNS N06600), Inconel 625 (UNS N06625), Inconel 601 (UNS N06601), Hastelloy C 276 (UNS N10276), Titanium (Grade I & II), Alloy 20 (UNS N08020), Cupro Nickel 70/30, CuNi30Mn1Fe, CuNi10Fe1Mn.
Carbon Steel Long Radius Bend	ASTM A234, ASME SA234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.
Low Temperature Carbon Steel Long Radius Bend	ASTM A420 WPL3, A420 WPL6

Nominal Pipe Size	Outside Diameter	Inside Diameter	Wall Thickness	Center To End	Pipe Schedule	Weight Pounds
1/2	0.84	0.622	0.109	1.5	40	0.16
3/4	1.05	0.824	0.113	1.5	40	0.17
1	1.32	1.049	0.133	1.5	40	0.4
1 1/4	1.66	1.38	0.14	1.88	40	0.55
1 1/2	1.9	1.61	0.145	2.25	40	0.8
2	2.38	2.07	0.154	3	40	1.6
2 1/2	2.88	2.47	0.203	3.75	40	3.2
3	3.5	3.07	0.216	4.5	40	4.8
3 1/2	4	3.55	0.226	5.25	40	6.6
4	4.5	4.03	0.237	6	40	8.9
5	5.56	5.05	0.258	7.5	40	15.1
6	6.62	6.07	0.28	9	40	24
8	8.62	7.98	0.322	12	40	47.8
10	10.75	10.02	0.365	15	40	83.4
12	12.75	12	0.375	18	*	123
14	14	13.25	0.375	21	30	155
16	16	15.25	0.375	24	30	206
18	18	17.25	0.375	27	*	262
20	20	19.25	0.375	30	20	324
24	24	23.25	0.375	36	20	466
30	30	29.25	0.375	45	*	720
36	36	35.25	0.375	54	*	1,039
42	42	41.25	0.375	63	*	1,420
48	48	47.25	0.375	72	*	2,000

Nominal Pipe Size	Outside Diameter	Inside Diameter	Wall Thickness	Center To End	Pipe Schedule	Weight Pounds
1/2	0.84	0.546	0.147	1.5	80	0.26
3/4	1.05	0.742	0.154	1.5	80	0.29
1	1.32	0.957	0.179	1.5	80	0.48
1 1/4	1.66	1.27	0.191	1.88	80	0.79
1 1/2	1.9	1.5	0.2	2.25	80	1.2
2	2.37	1.93	0.218	3	80	2.1
2 1/2	2.88	2.32	0.276	3.75	80	3.8
3	3.5	2.9	0.3	4.5	80	6.3
3 1/2	4	3.36	0.318	5.25	80	8.6
4	4.5	3.82	0.337	6	80	12.5
5	5.56	4.81	0.375	7.5	80	21.2
6	6.63	5.76	0.432	9	80	34.4
8	8.63	7.63	0.5	12	80	71.3
10	10.75	9.75	0.5	15	60	111
12	12.75	11.75	0.5	18	*	158
14	14	13	0.5	21	*	201
16	16	15	0.5	24	40	270
18	18	17	0.5	27	*	348
20	20	19	0.5	30	30	422
24	24	23	0.5	36	*	604
30	30	29	0.5	45	20	997
36	36	35	0.5	54	20	1,380
42	42	41	0.5	63	*	1,880
48	48	47	0.5	72	*	2,502

Long Radius Bend

Nickel Alloy Long Radius Bend, ASTM A403 SS Welded Long Radius Bend, ANSI B16.9 Long Radius Bend, High Quality Buttweld Long Radius Bend, Stainless Steel Buttweld Long Radius Bend, Butt weld Long Radius Bend Supplier in Mumbai, India.

ANSI

ASME

Pressure Rating

JIS

Standard Quality Specification Of Long Radius Bend

Material Grades of ANSI B16.9 Long Radius Bend

Manufacturer of Long Radius Bend, ANSI B16.9 Long Radius Bend Wholesaler, ASME B16.9 Long Radius Bend Price in India.

Check ASME B16.9 Long Radius Bend Dimensions.

ASME B16.9 Long Radius Bend Dimensions

Long Radius Bend Extra Strong Sizes

Other Types Of Long Radius Bend
