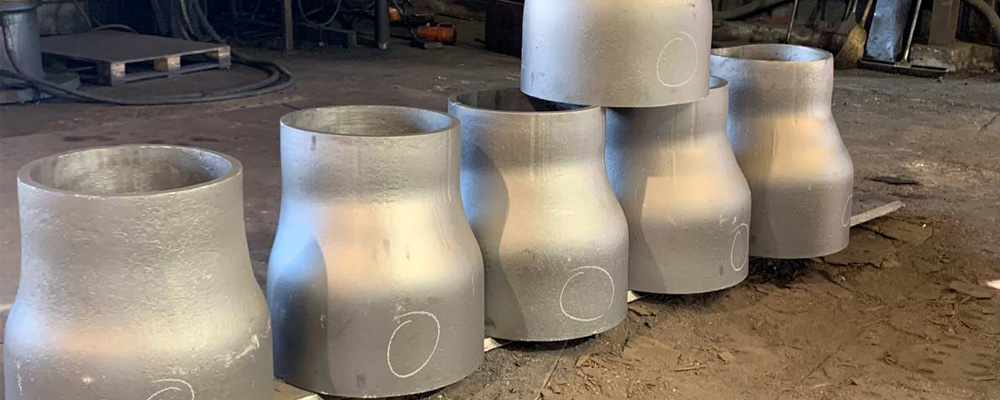

Concentric Reducer, Stainless Steel Welded Concentric Reducer, ANSI B16.9 Buttweld Concentric Reducer

This product is an increased chromium ferrite product with the aid of using method of getting exquisite oxidation resistance and increased temperature corrosion. The resistance to cyclic oxidation on this Stainless Steel Concentric Reducer Pipe Fittings is equal to or advanced, but by way of decrease efficiency at excessive temperatures. This steel are getting used for various applications which includes in Aircraft exhaust stacks, Chemical processing gadget, Manifolds, Welded gadget, etc. This steel is likewise utilized in Heat exchangers, Jet engine parts, Aircraft enterprise, Refinery enterprise gadget Oil refineries, etc. This steel is as nicely utilized in High temperature chemical technique gadget, Fabrication enterprise, and more. This steel can similarly be custom designed in phrases of sizes and thicknesses as consistent with particular necessities given with the aid of using our esteemed clients. This Carbon Steel Concentric Reducer Pipe Fittings is a miles and extensive used as steel, in which its additives are being heated inside carbide-precipitation temperature variety of 800 degrees Fahrenheit to 1500degrees Fahrenheit, and is likewise uncovered to corrosive environment. This steel has a few exquisite welding properties, and post-weld annealing isn't always required in formed for to reinstate its accurate overall performance in an intensive variety of corrosive forms.

The range of our steel provided with the aid of using us are synthetic the usage of superior technique technology to fulfil the unique method demands collectively with spinning swaging, compression and crimping. It is titanium stabilised austenitic alloy. The addition of titanium to this Duplex Steel Concentric Reducer Pipe Fittings allows enhancing its welding traits and the excessive temperature properties of the steel. This product affords accurate corrosion resistance and oxidation resistance. Meanwhile, this product affords better creep and strain rupture properties that of austenitic steel. This product can similarly be custom designed in phrases of sizes and thicknesses as consistent with particular necessities given with the aid of using our esteemed clients.

Dimensions	ASME B16.25, B16.28, MSS-SP-43, ANSI/ASME B16.9
Fabricated Size	1/2" (15 NB) to 48" (1200NB)
Seamless Size	1/2"~24"
Thickness	5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS available with NACE MR 01-75
Schedule	SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Type	Welded, Seamless, Fabricated

Stainless Steel Concentric Reducer	ASTM A403 WP316, 316L, WP304, 304L, ASTM A182 F316L, 304L, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404
Alloy Steel Concentric Reducer	ASTM A234, ASME SA234 WP1, WP5, WP9, WP11, WP22, WP91
Super Duplex Concentric Reducer	ASTM A815 / ASME SA815 UNS No S32750, S32950
Duplex Steel Concentric Reducer	ASTM A815 / ASME SA815 UNS No S31803, S32205
Nickel Alloy Concentric Reducer	ASTM B336, ASME SB336, Nickel 200 (UNS N02200), Nickel 201 (UNS N02201), Monel 400 (UNS N04400), Monel 500 (UNS N05500), Inconel 800 (UNS N08800), Inconel 825 (UNS N08825), Inconel 600 (UNS N06600), Inconel 625 (UNS N06625), Inconel 601 (UNS N06601), Hastelloy C 276 (UNS N10276), Titanium (Grade I & II), Alloy 20 (UNS N08020), Cupro Nickel 70/30, CuNi30Mn1Fe, CuNi10Fe1Mn.
Carbon Steel Concentric Reducer	ASTM A234, ASME SA234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.
Low Temperature Carbon Steel Concentric Reducer	ASTM A420 WPL3, A420 WPL6

REDUCERS
inches	mm	D	d	H
3/4 x 3/4	20 x 15	26,67	21,34	38,10
3/4 x 3/8	20 x 10	26,67	17,14	38,10
1 x 3/4	25 x 20	33,40	26,67	50,80
1 x 1/2	25 x 15	33,40	21,34	50,80
1 1/4 x 1	32 x 25	42,16	33,40	50,80
1 1/4 x 3/4	32 x 20	42,16	26,67	50,80
1 1/4 x 1/2	32 x 15	42,16	21,34	50,80
1 1/2 x 1 1/4	40 x 32	48,26	42,16	63,50
1 1/2 x 1	40 x 25	48,26	33,40	63,50
1 1/2 x 3/4	40 x 20	48,26	26,67	63,50
1 1/2 x 1/2	40 x 15	48,26	21,34	63,50
2 x 1 1/2	50 x 40	60,32	48,26	76,20
2 x 1 1/4	50 x 32	60,32	42,16	76,20
2 x 1	50 x 25	60,32	33,40	76,20
2 x 3/4	50 x 20	60,32	26,67	76,20
2 1/2 x 2	65 x 50	73,02	60,32	88,90
2 1/2 x 1 1/2	65 x 40	73,02	48,26	88,90
2 1/2 x 1 1/4	65 x 32	73,02	42,16	88,90
2 1/2 x1	65 x 25	73,02	33,40	88,90
3 x 2 1/2	80 x 65	88,90	73,02	88,90
3 x 2	80 x 50	88,90	60,32	88,90
3 x 1 1/2	80 x 40	88,90	48,26	88,90
3 x 1 1/4	80 x 32	88,90	42,16	88,90
3 1/2 x 3	90 x 80	101,60	88,90	101.60
3 1/2 x 2 1/2	90 x 65	101,60	73,02	101.60
3 1/2 x 2	90 x 50	101,60	60,32	101.60
3 1/2 x 1 1/2	90 x 40	101,60	48,26	101.60
3 1/2 x 1 1/4	90 x 32	101,60	42,16	101.60
4 x 3 1/2	100 x 90	114,30	73,02	101.60
4 x 3	100 x 80	114,30	88,90	101.60
4 x 2 1/2	100 x 65	114,30	73,02	101.60
4 x 2	100 x 50	114,30	60,32	101.60
4 x 1 1/2	100 x 40	114,30	48,26	101.60
5 x 4	125 x 100	141,30	114,30	127,00
5 x 3 1/2	125 x 90	141,30	101,60	127,00
5 x 3	125 x 80	141,30	88,90	127,00
5 x 2 1/2	125 x 65	141,30	73,02	127,00
5 x 2	125 x 50	141,30	60,32	127,00
6 x 5	150 x 125	168,27	141,30	139,7
6 x 4	150 x 100	168,27	114,30	139,7
6 x 1/2	150 x 90	168,27	101,60	139,7
6 x 3	150 x 80	168,27	88,90	139,7
6 x 1/2	150 x 65	168,27	73,02	139,7
8 x 6	200 x 150	219,07	168,27	152,4
8 x 5	200 x 125	219,07	141,30	152,4
8 x 4	200 x 100	219,07	114,30	152,4
8 x 3 1/2	200 x 90	219,07	101,60	152,4
10 x 8	250 x 200	273,05	219,07	177,8
10 x 6	250 x 150	273,05	168,27	177,8
10 x 5	250 x 125	273,05	141,30	177,8
10 x 4	250 x 100	273,05	114,30	177,8
12 x 10	300 x 250	323,85	273,05	203,2
12 x 8	300 x 200	323,85	219,07	203,2
12 x 6	300 x 150	323,85	168,27	203,2
12 x 5	300 x 125	323,85	141,30	203,2
14 x 12	350 x 300	355,60	323,85	330,2
14 x 10	350 x 250	355,60	273,05	330,2
14 x 8	350 x 200	355,60	219,07	330,2
14 x 6	350 x 150	355,60	168,27	330,2
16 x 14	400 x 350	406,40	355,60	355,6
16 x 12	400 x 300	406,40	323,85	355,6
16 x 10	400 x 250	406,40	273,05	355,6
16 x 8	400 x 200	406,40	219,07	355,6
18 x 16	450 x 400	457,20	406,40	381,0
18 x 14	450 x 350	457,20	355,60	381,0
18 x 12	450 x 300	457,20	323,85	381,0
18 x 10	450 x 250	457,20	273,05	381,0
20 x 18	500 x 450	508,00	457,20	508,0
20 x 16	500 x 400	508,00	406,40	508,0
20 x 14	500 x 350	508,00	355,60	508,0
20 x 12	500 x 300	508,00	323,85	508,0
22 x 20	550 x 500	558,80	508,00	508,0
22 x 18	550 x 450	558,80	457,20	508,0
22 x 16	550 x 400	558,80	406,40	508,0
22 x 14	550 x 350	558,80	355,60	508,0
24 x 22	600 x 550	609,6	558,80	508,0
24 x 20	600 x 500	609,6	508,00	508,0
24 x 18	600 x 450	609,6	457,20	508,0
24 x 16	600 x 400	609,6	406,40	508,0

Concentric Reducer
