Incoloy 800 Socket Weld Fittings, Incoloy 800 Socket Weld Elbow, 800 Incoloy Socket Weld Coupling

Incoloy UNS N08800 Socket Weld Fittings is used for quite a few domestic and industrial applications together with food managing and processing equipment, screws, equipment parts, and automobile headers. This product is utilized in nuts, bolts, screws, and poles apart fasteners within the marine environment, construction material in huge buildings, dyeing enterprise, and so on.Typical applications of this product consist of tanks and packing containers for a massive type of beverages and solids. It gives wonderful chemical composition, with containing a great quantity of molybdenum; usually up to certain percentage via way of means of weight. We provide an ideal first-class this product in company of our information and revel in within the area of production. The barely better rate factor of this alloy are properly really well worth it in regions in company of having an excessive chloride persuasive, specifically the coast and closely salted roadways. Incoloy WNR 1.4876 Socket Weld Fittings is extra proof against carbide precipitation and may perhaps be heated into this temperature variety. It can't be hardened via way of means of heat treatment. Ithas a tendency to own a strong, however thin, layer of oxide that stops rusting. This product is likewise used within the architectural area for outside accents together in company of water and its features.

Low thermal conductivity of this alloy outcomes in heat concentrating on the reducing edges, this means that coolants and lubricants are vital and should be utilized in massive quantities. Nickel Alloy 800 Socket Weld Fittings have top or wonderful resistance to corrosion in regular conditions.This alloy additionally incorporates silicon, manganese, and carbon, in company of having the bulk of the composition being iron. Itis used for a huge type of domestic and commercial applications, wherein that is one of the maximum acquainted and maximum time and again used alloys.These this product are made from advanced first-class materials and offer consistent overall performance.

Specifications	ASTM B564 / ASME SB564
Size	1/8″ NB to 4″ NB Socket Weld
Dimensions	ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Class	3000/ 6000/ 9000lbs
From	90º Elbows, 45º Elbows, Tees, Cross, Couplings, Inserts, Caps, Nipples, Unions, Equal Tees & Reducing Tees.

Specifications

ASTM B564 / ASME SB564

Size

1/8″ NB to 4″ NB Socket Weld

Dimensions

ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799

Class

3000/ 6000/ 9000lbs

From

90º Elbows, 45º Elbows, Tees, Cross, Couplings, Inserts, Caps, Nipples, Unions, Equal Tees & Reducing Tees.

Pipe Size	A	B	QTY	Weight Chart
¼	0.81	0.88	160	0.20
⁄	0.97	1.00	130	0.26
½	1.12	1.31	100	0.57
¾	1.31	1.5	75	0.71
1	1.5	1.81	40	1.08
1 ¼	1.75	2.19	25	1.68
1 ½	2.00	2.44	18	2.38
2	2.38	2.97	10	3.55
2 ½	3.00	3.62	4	6.22
3	3.38	4.31	2	10.36
4	4.19	5.75	1	23.91

Pipe Size

QTY

Weight Chart

0.81

0.88

160

0.20

⁄

0.97

1.00

130

0.26

1.12

1.31

100

0.57

1.31

1.5

0.71

1.5

1.81

1.08

1 ¼

1.75

2.19

1.68

1 ½

2.00

2.44

2.38

2.97

3.55

2 ½

3.00

3.62

6.22

3.38

4.31

10.36

4.19

5.75

23.91

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN	OR
Incoloy 800	1.4876	N08800	NCF 800	NA 15	ЭИ670	Z8NC32-21	X10NiCrAlTi32-20	XH32T

American Steel Socket Weld Fittings Standard
Standard Code	Standard Name
ANSI ASME SA-182	Forged fittings
ANSI ASME B16.11	Socket-welding forged fittings
MSS SP-79	Socket-welding reducing Inserts
MSS SP-83	Class 3000 steel socket-welding and Socket Weld unions
MSS SP-95	Swaged nipples and round plugs
MSS SP-97	SW,TH and BW ends for integrally reinforced forged branch outlet

Nominal Pipe Size				3000 PSI Rating					6000 PSI Rating
IN	MM	Socket Bore B •	Socket Depth D	Socket Thickness		A	Body Bore *	G	Socket Thickness		A	Body Bore *	G
IN	MM	Socket Bore B •	Socket Depth D	Average	MIN	A	Body Bore *	G	Average	MIN	A	Body Bore *	G
1/4	06	14.1	09.65	3.78	3.30	11.2	10.0	3.02	04.60	4.00	13.5	07.10	3.68
3/8	10	17.5	09.65	4.00	3.50	13.5	13.3	3.20	05.03	4.37	15.8	09.90	4.00
1/2	15	21.7	09.65	4.67	4.10	15.8	16.6	3.75	05.97	5.18	19.0	12.06	4.78
3/4	20	27.0	09.65	4.90	4.27	19.0	21.7	3,91	06.96	6.05	22.3	1603	5.56
1	25	33.8	12.07	5.70	4.98	22.3	27.4	4.55	07.92	6.93	27.0	21.05	6.35
1 1/4	32	42.5	12.07	6.04	5.28	27.0	65.8	4.85	07.92	6.93	31.8	30.02	6.35
1 1/2	40	48.6	12.07	6.35	5.54	31.8	41.7	5.08	08.92	7.80	38.0	34.07	7.15
2	50	61.1	12.07	6.93	6,06	38.0	53.3	5.54	10.92	9.52	41.2	43.06	8.75
2 1/2	65	73.8	15.08	8.76	7.67	41.2	64.2	7.00
3	80	89.8	15.08	9.50	8.30	57.2	-	7.68

Grade	C	Mn	Si	S	Cu	Fe	Ni	Cr	Al	Ti
800	0.10 max	1.50 max	1.00 max	0.015 max	0.75 max	39.50 min	30.00 – 35.00	19.00 – 23.00	0.15 – 0.60	0.15 – 0.60

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
800	7.94 g/cm3	1385 °C (2525 °F)	Psi – 75,000 , MPa – 520	Psi – 30,000 , MPa – 205	30 %

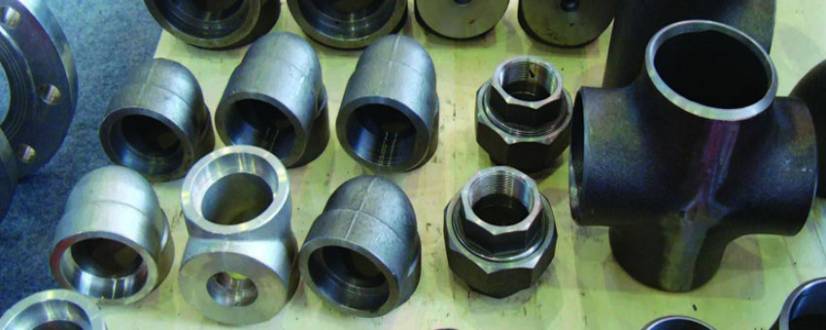

Incoloy 800 Socket Weld Fittings

800 Incoloy Socket Weld Elbow, 800 Incoloy Socket weld Cross, Incoloy 800 Socket Weld Tee, ASTM B564 Incoloy 800 Socket Weld Coupling Supplier in Mumbai, India.

Grade

UNS

WERKSTOFF NR.

ASTM / ASME

Standard Quality Specification Of Incoloy 800 Socket Weld Fittings

Available Types Of Incoloy 800 Socket Weld Fittings

Incoloy 800 Socket Weld Elbow

Incoloy 800 Socket Weld Tee

Incoloy 800 Socket Weld Cross

Incoloy 800 Socket Weld Coupling

Incoloy 800 Socket Weld Cap

Incoloy 800 Socket Weld Union

Equivalent Grade Of 800 Incoloy Socket Weld Fittings

Manufacturer of Incoloy 800 Socket Weld Fittings, ANSI B16.11 Incoloy 800 Forged Socket Weld Fittings Wholesaler, 800 Incoloy Socket weld Elbow Price in India.

Check ASTM B564 Incoloy 800 Socket Weld Fittings & 800 Incoloy Socket weld Fittings Weight Chart & Dimensions.

International Standards of Incoloy 800 Socket Weld Fittings

Incoloy 800 Socket Weld Fittings Dimensions in MM

Weight Chart of Incoloy 800 Socket Weld Fittings

Chemical Composition of 800 Incoloy Socket Weld Fittings

Mechanical Properties of Incoloy 800 Socket Weld Fittings

Other Types Of Incoloy 800 Socket Weld Fittings
